P89LV51RB2

Features:

80C51 Central Processing Unit
3 V Operating voltage from 0 MHz to 33 MHz
16/32/64 kB of on-chip Flash program memory with ISP (In-System Programming) and IAP (In-Application Programming)
Supports 12-clock (default) or 6-clock mode selection via software or ISP
SPI (Serial Peripheral Interface) and enhanced UART
PCA (Programmable Counter Array) with PWM and Capture/Compare functions
Four 8-bit I/O ports with three high-current Port 1 pins (16 mA each)
Three 16-bit timers/counters
Programmable Watchdog timer (WDT)
Eight interrupt sources with four priority levels
Second DPTR register
Low EMI mode (ALE inhibit)
TTL- and CMOS-compatible logic levels
Brown-out detection
Low power modes
  Power-down mode with external interrupt wake-up
  Idle mode
DIP40, PLCC44 and TQFP44 packages

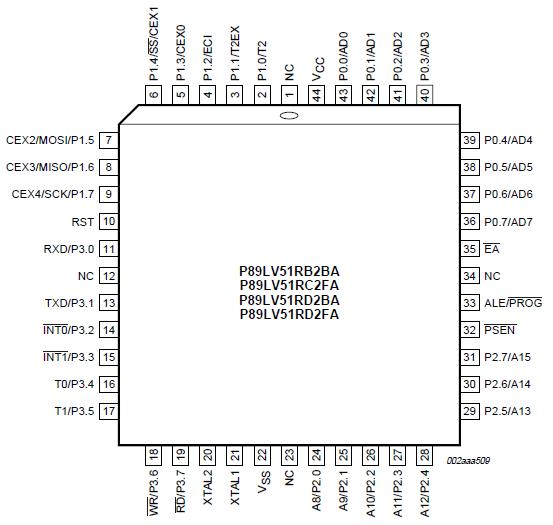

Pinout




Description

The P89LV51RB2/RC2/RD2 are 80C51 microcontrollers with 16/32/64 kB Flash and 1024 bytes of data RAM.

A key feature of the P89LV51RB2/RC2/RD2 is its X2 mode option. The design engineer can choose to run the application with the conventional 80C51 clock rate (12 clocks per machine cycle) or select the X2 mode (6 clocks per machine cycle) to achieve twice the throughput at the same clock frequency. Another way to benefit from P89LV51RB2/RC2/RD2 feature is to keep the same performance by reducing the clock frequency by half, thus dramatically reducing the EMI.

The Flash program memory supports both parallel programming and in serial In-System Programming (ISP). Parallel programming mode offers gang-programming at high speed, reducing programming costs and time to market. ISP P89LV51RB2/RC2/RD2 allows a device to be reprogrammed in the end product under software control. The capability to field/update the application firmware makes a wide range of applications possible.

The P89LV51RB2/RC2/RD2 is also In-Application Programmable (IAP), allowing the Flash program memory to be reconfigured even while the application is running.
