Product Details

Description

Features:

` 4 kB/8 kB Flash code memory with 1 kB erasable sectors, 64-byte erasable page
size, and single byte erase.
` 256-byte RAM data memory.
` Two 16-bit counter/timers. Each timer may be configured to toggle a port output
upon timer overflow or to become a PWM output.
` Real-Time clock that can also be used as a system timer.
` 4-input 8-bit multiplexed A/D converter/single DAC output. Two analog
comparators with selectable inputs and reference source.
` Enhanced UART with fractional baud rate generator, break detect, framing error
detection, automatic address detection and versatile interrupt capabilities.
` 400 kHz byte-wide I2C-bus communication port.
` Configurable on-chip oscillator with frequency range and RC oscillator options
(selected by user programmed Flash configuration bits). The RC oscillator (factory
calibrated to ±1 %) option allows operation without external oscillator
components. Oscillator options support frequencies from 20 kHz to the maximum
operating frequency of 18 MHz. The RC oscillator option is selectable and fine tunable.
` 2.4 V to 3.6 V VDD operating range. I/O pins are 5 V tolerant (may be pulled up or driven to 5.5 V).
` 15 I/O pins minimum. Up to 18 I/O pins while using on-chip oscillator and reset options.
2.2 Additional features
` 20-pin TSSOP package.
` A high performance 80C51 CPU provides instruction cycle times of 111 ns to
222 ns for all instructions except multiply and divide when executing at 18 MHz.
This is six times the performance of the standard 80C51 running at the same
clock frequency. A lower clock frequency for the same performance results in
power savings and reduced EMI.
` In-Application Programming of the Flash code memory. This allows changing the
code in a running application.
` Serial Flash programming allows simple in-circuit production coding. Flash
security bits prevent reading of sensitive application programs.
` Watchdog timer with separate on-chip oscillator, requiring no external
components. The watchdog prescaler is selectable from eight values.
` Low voltage reset (Brownout detect) allows a graceful system shutdown when
power fails. May optionally be configured as an interrupt.
` Idle and two different Power-down reduced power modes. Improved wake-up from
Power-down mode (a low interrupt input starts execution). Typical Power-down
current is 1 mA (total Power-down with voltage comparators disabled).
` Active-LOW reset. On-chip power-on reset allows operation without external reset
components. A reset counter and reset glitch suppression circuitry prevent
spurious and incomplete resets. A software reset function is also available.
` Oscillator Fail Detect. The watchdog timer has a separate fully on-chip oscillator
allowing it to perform an oscillator fail detect function.
` Programmable port output configuration options:
` quasi-bidirectional,
` open drain,
` input-only.
` Port 'input pattern match' detect. Port 0 may generate an interrupt when the value
of the pins match or do not match a programmable pattern.
` LED drive capability (20 mA) on all port pins. A maximum limit is specified for the entire chip.
` Controlled slew rate port outputs to reduce EMI. Outputs have approximately
10 ns minimum ramp times.
` Only power and ground connections are required to operate the P89LPC924/925
when internal reset option is selected.
` Four interrupt priority levels.
` Eight keypad interrupt inputs, plus two additional external interrupt inputs.
` Second data pointer.
` Schmitt trigger port inputs.
` Emulation suppor

Pinout

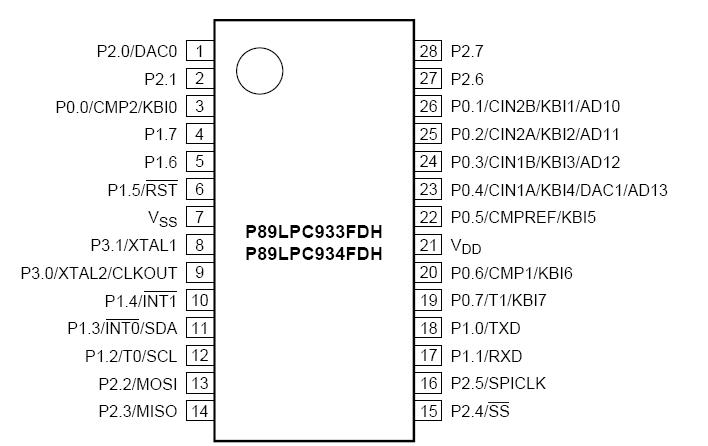

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
T_amb(bias)	operating bias ambient temperature		-55	+125	°C
T_stg	storage temperature range		-65	+150	°C
V_xtal	voltage on XTAL1, XTAL2 pin to VSS			VDD + 0.5	v
V_n	voltage on any other pin to VSS		-0.5	5.5	v
I_OH(I/O)	HIGH-level output current per I/O pin			20	mA
I_OL(I/O)	LOW-level output current per I/O pin			20	mA
I_{I/O(tot)(max)}	maximum total I/O current			100	mA
P_tot(pack)	total power dissipation per package	based on package heat transfer, not device power consumption		1.5	w

Description

The P89LPC933/934/935/936 is a single-chip microcontroller, available in low cost packages, based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices. Many system-level functions have been incorporated into the P89LPC933/934/935/936 in order to reduce component count, board space, and system cost.
