P89LPC932

Features: ` A high performance 80C51 CPU provides instruction cycle times of 167-333 ns for all instructions except multiply and divide when executing at 12 MHz. This is 6 times the performance of the standard 80C51 running at the same clock frequency. A lower clock frequency for the same performa...

product image

P89LPC932 Picture
See larger image
SeekIC No. : 004453765 Detail

P89LPC932: Features: ` A high performance 80C51 CPU provides instruction cycle times of 167-333 ns for all instructions except multiply and divide when executing at 12 MHz. This is 6 times the performance of t...

P89LPC932 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
P89LPC932
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` A high performance 80C51 CPU provides instruction cycle times of 167-333 ns for
  all instructions except multiply and divide when executing at 12 MHz. This is
  6 times the performance of the standard 80C51 running at the same clock
  frequency. A lower clock frequency for the same performance results in power
  savings and reduced EMI.
` 2.4 V to 3.6 V VDD operating range. I/O pins are 5 V tolerant (may be pulled up or
  driven to 5.5 V).
` 8 kB Flash code memory with 1 kB erasable sectors, 64-byte erasable page size.
` 256-byte RAM data memory. 512-byte auxiliary on-chip RAM.
` 512-byte customer Data EEPROM on chip allows serialization of devices, storage
  of set-up parameters, etc.
` Two 16-bit counter/timers. Each timer may be configured to toggle a port output
  upon timer overflow or to become a PWM output.
` Real-Time clock that can also be used as a system timer.
` Capture/Compare Unit (CCU) provides PWM, input capture, and output compare functions.
` Two analog comparators with selectable inputs and reference source.
` Enhanced UART with fractional baud rate generator, break detect, framing error
  detection, automatic address detection and versatile interrupt capabilities.
` 400 kHz byte-wide I2C-bus communication port.
` SPI communication port.
` Eight keypad interrupt inputs, plus two additional external interrupt inputs.
` Four interrupt priority levels.
` Watchdog timer with separate on-chip oscillator, requiring no external
  components. The watchdog prescaler is selectable from 8 values.
` Active-LOW reset. On-chip power-on reset allows operation without external reset
  components. A reset counter and reset glitch suppression circuitry prevent
  spurious and incomplete resets. A software reset function is also available.
` Low voltage reset (Brownout detect) allows a graceful system shutdown when
  power fails. May optionally be configured as an interrupt.
` Oscillator Fail Detect. The Watchdog timer has a separate fully on-chip oscillator
  allowing it to perform an oscillator fail detect function.
` Configurable on-chip oscillator with frequency range and RC oscillator options
  (selected by user programmed Flash configuration bits). The RC oscillator option
  allows operation without external oscillator components. Oscillator options
  support frequencies from 20 kHz to the maximum operating frequency of 12 MHz.
  T  he RC oscillator option is selectable and fine tunable.
` Programmable port output configuration options:
` quasi-bidirectional,
` open drain,
` push-pull,
` input-only.
` Port 'input pattern match' detect. Port 0 may generate an interrupt when the value
  of the pins match or do not match a programmable pattern.
` Second data pointer.
` Schmitt trigger port inputs.
` LED drive capability (20 mA) on all port pins. A maximum limit is specified for the entire chip.
` Controlled slew rate port outputs to reduce EMI. Outputs have approximately
  10 ns minimum ramp times.
` 23 I/O pins minimum (28-pin package). Up to 26 I/O pins while using on-chip
  oscillator and reset options.
` Only power and ground connections are required to operate the P89LPC932
  when on-chip oscillator and reset options are selected.
` Serial Flash programming allows simple in-circuit production coding. Flash
  security bits prevent reading of sensitive application programs.
` In-Application Programming of the Flash code memory. This allows changing the
  code in a running application.
` Idle and two different Power-down reduced power modes. Improved wake-up from
  Power-down mode (a low interrupt input starts execution). Typical Power-down
  current is 1 mA (total Power-down with voltage comparators disabled).
` 28-pin PLCC, TSSOP, and HVQFN packages.
` Emulation support.


Pinout

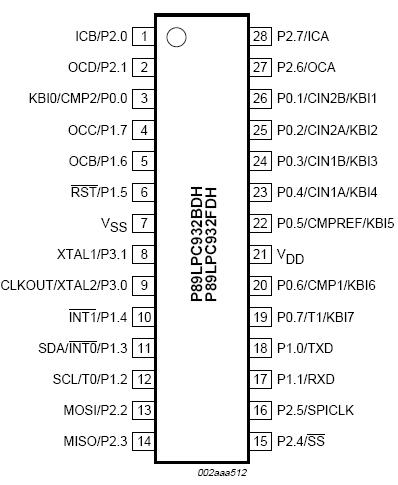

Connection Diagram


Specifications

Symbol Parameter Conditions Min Max Unit
Tamb(bias) operating bias ambient temperature   -55 +125 °C
Tstg storage temperature range   -65 +150 °C
Vxtal voltage on XTAL1, XTAL2 pin to VSS     VDD + 0.5 v
Vn voltage on any other pin to VSS   -0.5 5.5 v
IOH(I/O) HIGH-level output current per I/O pin     20 mA
IOL(I/O) LOW-level output current per I/O pin     20 mA
II/O(tot)(max) maximum total I/O current     100 mA
Ptot(pack) total power dissipation per package based on package heat
transfer, not device power
consumption		   1.5 w



Description

The P89LPC932 is a single-chip microcontroller, available in low cost packages, based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices. Many system-level functions have been incorporated into the P89LPC932 in order to reduce component count, board space, and system cost.
