P89LPC907

Features: ·1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage.· 128-byte RAM data memory.· Two 16-bit counter/timers. (Timer 0 may be configured to toggle a port output upon timer ov...

product image

P89LPC907 Picture
See larger image
SeekIC No. : 004453750 Detail

P89LPC907: Features: ·1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage.· 128-byte RAM data ...

P89LPC907 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
P89LPC907
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage.
· 128-byte RAM data memory.
· Two 16-bit counter/timers. (Timer 0 may be configured to toggle a port output upon timer overflow or to become a PWM output on the P89LPC907 device).
· 23-bit system timer that can also be used as a Real-Time clock.
·A single analog comparator with selectable reference source.
·Enhanced UART with fractional baudrate generator, break detect, framing error detection, automatic address detection and versatile interrupt capabilities (P89LPC908, transmit only on P89LPC907).
·Internal RC oscillator option (factory calibrated to ±1 %) allows operation without external oscillator components. The RC oscillator option is selectable and fine tunable.
·2.4 V to 3.6 V VDD operating range with 5 V tolerant I/O pins (may be pulled up or driven to 5.5 V). Supply pins located at package centers for improved supply decoupling and reduced EMI.
· Up to six I/O pins when using internal oscillator and reset options.
· 8-pin SO-8 package.


Pinout

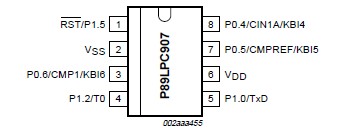

Connection Diagram




Description

The P89LPC906/907/908 are single-chip microcontrollers in low-cost 8-pin packages, based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices. Many system-level functions have been incorporated into the P89LPC906/907/908 in order to reduce component count, board space, and system cost.
