Product Details

Description



Features:

· 1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage.
· 128-byte RAM data memory.
· Two 16-bit counter/timers.
· 23-bit system timer that can also be used as a Real-Time clock.
· 2 -input multiplexed A/D converter/single DAC output. Two analog comparators with selectable reference.
· Enhanced UART with fractional baud rate generator, break detect, framing error detection, automatic address detection and versatile interrupt capabilities.
· High-accuracy internal RC oscillator option allows operation without external oscillator components. The RC oscillator option is selectable and fine tunable.
· 2.4 V to 3.6 V VDD operating range with 5 V tolerant I/O pins (may be pulled up or driven to 5.5 V). Industry-standard pinout with VDD, VSS, and reset at locations 1, 8, and 4.
· Up to six I/O pins when using internal oscillator and reset options.
· 8-pin SO-8 package.


Pinout

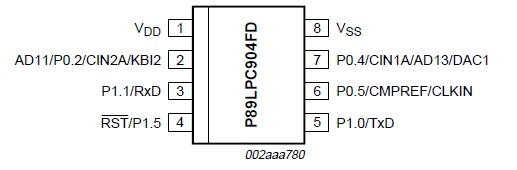

Connection Diagram


Description

The P89LPC904 is a single-chip microcontroller in a low-cost 8-pin package based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices. Many system-level functions have been incorporated into the P89LPC904 in order to reduce component count, board space, and system cost.
