Features:

2.1 Key features
· Extended features of the 51MX Core:
· 23-bit program memory space and 23-bit data memory space
· Linear program and data address range expanded to support up to 8 Mbytes each
· Program counter expanded to 23 bits
· Stack pointer extended to 16 bits enabling stack space beyond the 80C51 limitation
· New 23-bit extended data pointer and two 24-bit universal pointers greatly
improve C compiler code efficiency in using pointers to access variables in
different spaces
· 100% binary compatibility with the classic 80C51 so that existing code is
completely reusable
· Up to 24 MHz CPU clock with 6 clock cycles per machine cycle
· 96 kbytes of on-chip program Flash
· 2 kbytes of on-chip data RAM
· Programmable Counter Array (PCA)
· Two full-duplex enhanced UARTs
· Byte based Fast I2C serial interface (400 kbits/s)
2.2 Key benefits
· Increases program/data address range to 8 Mbytes each
· Enhances performance and efficiency for C programs
· Fully 80C51-compatible microcontroller
· Provides seamless and compelling upgrade path from classic 80C51
· Preserves 80C51 code base, investment/knowledge, and peripherals and ASICs
· Supported by wide range of 80C51 development systems and programming tools vendors
· The P89C669 makes it possible to develop applications at lower cost and with a reduced time-to-market
2.3 Complete features
· Fully static
· Up to 24 MHz CPU clock with 6 clock cycles per machine cycle
· 96 kbytes of on-chip Flash with In-System Programming (ISP) and In-Application
Programming (IAP) capability
· 2 kbytes of on-chip RAM
· 23-bit program memory space and 23-bit data memory space
· Four-level interrupt priority
· 32 I/O lines (4 ports)
· Three Timers: Timer0, Timer1 and Timer2
· Two full-duplex enhanced UARTs with baud rate generator
· Byte based Fast I2C-bus serial interface (400 kbits/s)
· Framing error detection
· Automatic address recognition
· Power control modes
· Clock can be stopped and resumed
· Idle mode
· Power-down mode
· Second DPTR register
· Asynchronous port reset
· Programmable Counter Array (PCA) (compatible with 8xC51Rx+) with five
Capture/Compare modules
· Watchdog timer with programmable prescaler for different time ranges
(compatible with 8xC66x with added prescaler)

Pinout

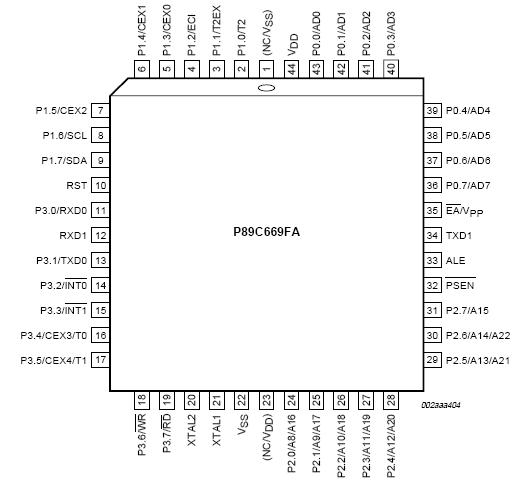

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
T_amb(bias)	operating bias ambient temperature		0	+70	°C
T_stg	storage temperature range		-40	+85	°C
I_I	input voltage on EA/VPP pin to VSS		0	+13	V
I_I	input voltage on any other pin to VSS		-65	VDD + 0.5	V
I_{I/O(tot)(max)}	maximum total I/O current		0	20	mA
P_tot(pack)	power dissipatione	based on package heat transfer, not device power consumption	-	1.5	w

Description

The P89C669 represents the first Flash microcontroller based on Philips Semiconductors' new 51MX core. The P89C669 features 96 kbytes of Flash program memory and 2 kbytes of data SRAM. In addition, this device is equipped with a Programmable Counter Array (PCA), a watchdog timer that can be configured to different time ranges through SFR bits, as well as two enhanced UARTs and byte based I2C-bus serial interface.

Philips Semiconductors' 51MX (Memory eXtension) core is an accelerated 80C51 architecture that executes instructions at twice the rate of standard 80C51 devices. The linear address range of the 51MX has been expanded to support up to 8 Mbytes of program memory and 8 Mbytes of data memory. P89C669 retains full program code compatibility to enable design engineers to re-use 80C51 development tools, eliminating the need to move to a new, unfamiliar architecture. The 51MX core also retains 80C51 bus compatibility to allow for he continued use of 80C51-interfaced peripherals and Application Specific Integrated Circuits (ASICs).

The P89C669 provides greater functionality, increased performance and overall lower system cost. By offering an embedded memory solution combined with the enhancements to manage the memory extension, the P89C669 eliminates the need or software work-arounds. The increased program memory enables design engineers to develop more complex programs in a high-level language like C, for\ example, without struggling to contain the program within the traditional 64 kbytes of program memory. These enhancements also greatly improve C Language efficiency for code size below 64 kbytes.

The P89C669 device contains a non-volatile Flash program memory that is both parallel programmable and serial In-System and In-Application Programmable. In-System Programming (ISP) allows the user to download new code while the microcontroller sits in the application. In-Application Programming (IAP) means that the microcontroller fetches new program code and reprograms itself while in the system. P89C669 allows for remote programming over a modem link. A default serial loader (boot loader) program in ROM allows serial In-System programming of the Flash memory via the UART without the need for a loader in the Flash code. For In-Application Programming, the user program erases and reprograms the Flash memory by use of standard routines contained in ROM.
