Features:

` Single-chip I/O device with CAN protocol controller
` Meets CAN protocol specification version 2.0 A and B
  (passive) with restricted bit timing
` Fully integrated clock oscillator (no crystal required)
` 16 configurable digital or analog I/O port pins
` Each of the port pins individually configurable via
  CAN-bus: port direction, port mode and event capture
  facilities for inputs (event driven or polling)
` Up to sixteen digital inputs; automatic transmission of a
  CAN message on a change on inputs individuallyselectable
` Up to sixteen 3-state outputs
` Up to two quasi-analog outputs with 10-bit accuracy
` 10-bit analog-to-digital converter with up to six
  multiplexed analog input channels (for accuracy see Section 11.6)
` Two general purpose comparators
` Bit rate from 20 kbit/s up to 125 kbit/s using internal oscillator
` Automatic bit rate detection and calibration
` Up to sixteen P82C150 nodes for one CAN-bus system
` Four identifier bits programmable
` SLIO functions controlled by a single intelligent node ('host')
` Sleep-mode with wake-up via CAN-bus
` Differential CAN-bus input comparator and CAN-bus output driver
` Supply voltage: 5 V ±4%
` Operating temperature: two ranges -40 to +85 °C and -40 to +125 °C.


Application

· Body electronics and instrumentation in automotive applications
· Sensor/actuator interface in automotive and general industrial applications
· Extension of I/O capabilities of microcontroller based CAN nodes.


Pinout

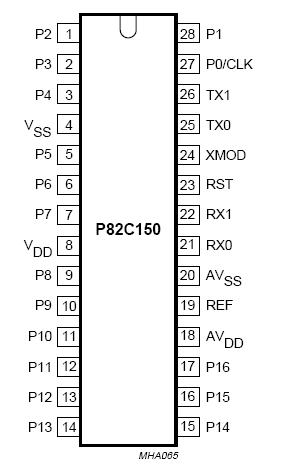

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD supply voltage on VDD pin -0.5 +6.5 V
VI DC input voltage on any pin
(RX0, RX1, TX0, TX1 excluded)		 -0.5
-0.5		 VDD + 0.5
+13		 V
V
II RX1 and RX0 input current - ±2 mA
IREF reference output current   ±2 mA
IO port output current at port enabled (pins P0 to P15) - ±5 mA
port output current at analog switch enabled
(OE-bits = 0; pins P5 to P9, P13, P14)		 7.5
TX0 and TX1 output current 30
Ptot total power dissipation (note 2) - 1.0 W
Tstg storage temperature range -65 +150 °C
Ptot total power dissipation - 200 mW
Tamb operating ambient temperature range:
P8xC557E8EFB		 -40 +85 °C



Description

The P82C150 is a single-chip 16-bit I/O device including a Controller Area Network (CAN) protocol controller with automatic bit rate detection and calibration. It features 16 configurable I/O port pins with programmable direction, digital and analog modes. The P82C150 provides a configurable event capture facility supporting automatic transmission caused by a change on the port input pins.

The clock oscillator requires no external components, thus, the cost of the CAN link is reduced significantly. The P82C150 is a very cost-effective way to increase the I/O capability of a microcontroller based CAN node as well as to reduce the amount and complexity of wiring. Advanced safety is provided by the CAN protocol.
