Features: • 32 K * 8 ROM respectively FEEPROM (Flash-EEPROM),
expandable externally to 64 Kbytes
• ROM/FEEPROM Code protection
• 1024 * 8 RAM, expandable externally to 64 Kbytes
• Two standard 16-bit timer/counters
• An additional 16-bit timer/counter coupled to four capture
registers and three compare registers
• A 10-bit ADC with eight multiplexed analog inputs and
programmable autoscan
• Two 8-bit resolution, pulse width modulation outputs
• Five 8-bit I/O ports plus one 8-bit input port shared with analog inputs
• I2C-bus serial I/O port with byte oriented master and slave functions
• Full-duplex UART compatible with the standard 80C51
• On-chip watchdog timer
• 15 interrupt sources with 2 priority levels (2 to 6 external sources possible)
• Extended temperature range (40 to +85°C)
• 4.5 to 5.5 V supply voltage range
• Frequency range for 80C51-family standard oscillator:
3.5 MHz to 16 MHz
• PLL oscillator with 32 kHz reference and software-selectable
system clock frequency
• Seconds Timer
• Software enable/disable of ALE output pulse
• Electromagnetic compatibility improvements

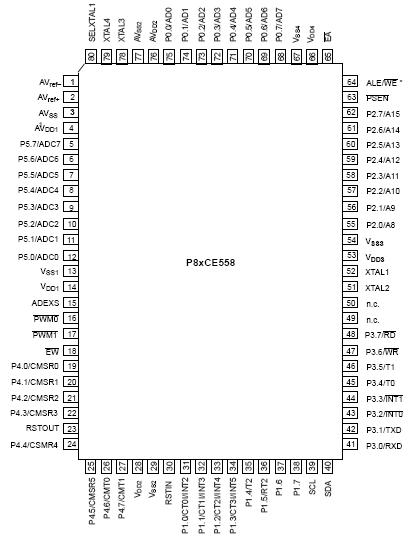

• Wake-up from Power-down by external or seconds interruptPinout
Specifications
| PARAMETER |
RATING |
UNIT |
| Storage temperature range |
-65 to +150 |
°C |
| Voltage on VDD to VSS and SCL, SDA to VSS |
0.5to+6.5 |
V |
| Input / output current on any I/O pin |
10 |
mA |
| Power dissipation (based on package heat transfer, not device power consumption) |
1.5 |
W |
NOTES:
1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any conditions other than those described in the AC and DC Electrical Characteristics section
of this specification is not implied.
2. This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive static
charge. Nonetheless, it is suggested that conventional precautions are taken to avoid applying greater than the rated maxima.
3. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to VSS unless otherwise noted.DescriptionThe P80CE558/P83CE558/P89CE558 (hereafter generically referred to as P8xCE558) single-chip 8-bit microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The P8xCE558 has the same instruction set as the 80C51. Three versions of the derivative exist:
• P83CE558 - 32 Kbytes mask programmable ROM
• P80CE558 - ROMless version of the P83CE558
• P89CE558 - 32 Kbytes FEEPROM (Flash-EEPROM)
The P8xCE558 contains a non-volatile 32 Kbytes mask programmable ROM (P83CE558) or electrically erasable FEEPROMrespectively (P89CE558), a volatile 1024 * 8 read/write data memory, five 8-bit I/O ports, one 8-bit input port, two 16-bit timer/event counters (identical to the timers of the 80C51), an additional 16-bit timer coupled to capture and compare latches, a 15-source, two-priority-level, nested interrupt structure, an 8-input ADC, a dual DAC pulse width modulated interface, two serial interfaces (UART and I2C-bus), a "watchdog" timer, an on-chip oscillator and timing circuits. For systems that require extra capability the P8xCE558 can be expanded using standard TTL compatible memories and logic.
In addition, the P8xCE558 has two software selectable modes of power reduction - Idle Mode and power-down mode. The Idle Mode freezes the CPU while allowing the RAM, timers, serial ports, and interrupt system to continue functioning. The power-down mod saves the RAM contents but freezes the oscillator, causing all other chip functions to be inoperative.
The P80CE558/P83CE558/P89CE558 also functions as an arithmetic processor having facilities for both binary and BCD arithmetic as well as bit-handling capabilities. The instruction set consists of over 100 instructions: 49 one-byte, 45 two-byte, and 17 three- byte. With a 16 MHz system clock, 58% of the instructions are executed in 0.75 ms and 40% in 1.5 ms. Multiply and divide instructions require 3 ms.
P80CE558EBB Data Sheet
