P6KE11ARL

Channels :
Termination Style :
Capacitance :
Polarity : Unidirectional
Maximum Operating Temperature : + 150 C
Minimum Operating Temperature : - 55 C
Packaging : Reel
Peak Pulse Power Dissipation : 600 W
Package / Case : Case 017AA-01
Clamping Voltage : 15.6 V
Operating Voltage : 9.4 V
Breakdown Voltage : 10.5 V
Peak Surge Current : 38 A


Features:

• Working Peak Reverse Voltage Range 5.8 to 171 V
• Peak Power 600 Watts @ 1 ms
• ESD Rating of Class 3 (>16 KV) per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 5 mA above 10 V
• Maximum Temperature Coefficient Specified
• UL 497B for Isolated Loop Circuit Protection
• Response Time is typically < 1 ns

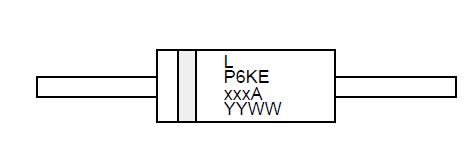

Pinout




Specifications

Rating	Symbol	Value	Unit
Peak Power Dissipation (Note 1.) @ TL 3 25°C	PPK	600	Watts
Steady State Power Dissipation @ TL 3 75°C, Lead Length = 3/8, Derated above TL = 75°C	PD	5.0 50	Watts mW/°C
Thermal Resistance, JunctiontoLead	RJA	20	°C/W
Forward Surge Current (Note 2.) @ TA = 25°C	IFSM	100	Amps
Operating and Storage Temperature Range	TJ, Tstg	55 to +175	°C

Description

The P6KE6.8A series is designed to protect voltage sensitive components from high voltage, high energy transients. P6KE6.8A series have excellent clamping capability, high surge capability, low zener impedance and fast response time. These devices are ON Semiconductor's exclusive, cost-effective, highly reliable Surmetic axial leaded package and is ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
