Position: Home  > All Categories> Integrated Circuits (ICs) > P2602GBLRP

P2602GBLRP

Sidacs 275V 80A SIDACtor Bi

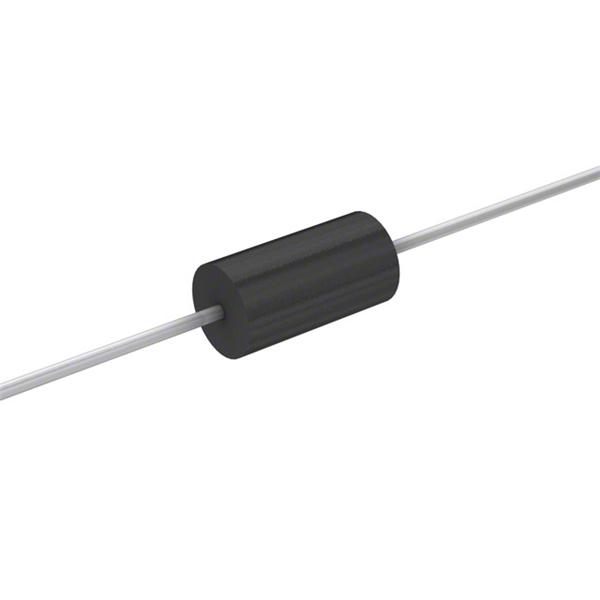

product image

P2602GBLRP Picture
See larger image
SeekIC No. : 00200734 Detail

P2602GBLRP: Sidacs 275V 80A SIDACtor Bi

P2602GBLRP Data Sheet

floor Price/Ceiling Price

US $ .19~.21 / Piece | Get Latest Price
Part Number:
P2602GBLRP
Mfg:
Littelfuse
Supply Ability:
5000

Price Break

  • Qty
  • 0~3300
  • 3300~5000
  • 5000~10000
  • Unit Price
  • $.21
  • $.2
  • $.19
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Breakover Voltage VBO : 300 V Breakover Current IBO Max : 800 mA
Non Repetitive On-State Current : 25 A Rated Repetitive Off-State Voltage VDRM : 220 V
Off-State Leakage Current @ VDRM IDRM : 5 uA Holding Current (Ih Max) : 150 mA
On-State Voltage : 8 V Off-State Capacitance CO : 15 pF to 25 pF
Maximum Operating Temperature : + 85 C Mounting Style : Through Hole
Package / Case : DO-15-2

Description

Off-State Leakage Current @ VDRM IDRM : 5 uA
Maximum Operating Temperature : + 85 C
Breakover Current IBO Max : 800 mA
Holding Current (Ih Max) : 150 mA
Mounting Style : Through Hole
On-State Voltage : 8 V
Breakover Voltage VBO : 300 V
Rated Repetitive Off-State Voltage VDRM : 220 V
Off-State Capacitance CO : 15 pF to 25 pF
Non Repetitive On-State Current : 25 A
Package / Case : DO-15-2


Parameters:

Technical/Catalog InformationP2602GBLRP
VendorLittelfuse / Teccor Sidactor(R) Product (VA)
CategoryCircuit Protection
Package / CaseDO-15, DO-204AC, Axial
PackagingCut Tape (CT)
Capacitance25pF
Voltage - Breakover300.0V
Current - Peak Pulse (8 x 20s) -
Current - Peak Pulse (10 x 1000s)80A
Number of Circuits1 - Single
Voltage - Off State220V
Lead Free StatusLead Free Compliant by Exemption
RoHS StatusRoHS Compliant
Other Names P2602GBLRP
P2602GBLRP
P2602GBLRPCT ND
P2602GBLRPCTND
P2602GBLRPCT
