P2082A

Features: ·Generates 2X and 4X clocks of the input clock frequency·Input clock frequency range from 3 MHz to 78 MHz·Provides up to:P2082A: 156 MHz output clock frequency P2084A: 312 MHz output clock frequency·External loop filter·Low cycle-to-cycle jitter·3.3 V operating voltage range·10 mA output...

product image

P2082A Picture
See larger image
SeekIC No. : 004439080 Detail

P2082A: Features: ·Generates 2X and 4X clocks of the input clock frequency·Input clock frequency range from 3 MHz to 78 MHz·Provides up to:P2082A: 156 MHz output clock frequency P2084A: 312 MHz output clock...

P2082A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
P2082A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Generates 2X and 4X clocks of the input clock frequency
·Input clock frequency range from 3 MHz to 78 MHz
·Provides up to:
   P2082A: 156 MHz output clock frequency
   P2084A: 312 MHz output clock frequency
·External loop filter
·Low cycle-to-cycle jitter
·3.3 V operating voltage range
·10 mA output drives
·TTL or CMOS compatible outputs
·Ultra-low power CMOS design
·Available in industrial temperature range (-25C to +85C)
·Available in 8-pin SOIC and TSSOP


Application

The P2082A/84A is targeted towards the high frequency CAN OSC replacement market. Applications include xDSL, routers, networking, PC peripherals, and embedded systems.

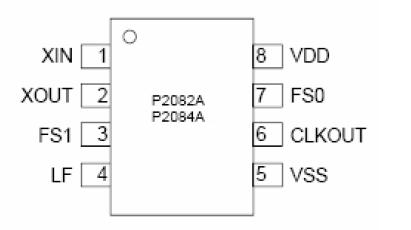

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Rating
Unit
VDD, VIN
 Voltage on any pin with respect to GND
-0.5 to + 7.0
V
TSTG
 Storage temperature
-65 to +125
°C
TA
 Operating temperature
0 to 70
°C



Description

The P2082A and P2084A are versatile frequency multipliers that are designed specifically as cost effective alternatives to the high precision frequency oscillator.

The P2082A/84A can generate a 2X and 4X output clock respectively of the input frequency which allows system cost savings by using an inexpensive crystal or resonator to achieve high frequency multiplication.

The P2082A/84A provides up to 156 MHz and 312 MHz output clock frequencies respectively through the use of the Phase-Lock-Loop (PLL) technique which delivers low jitter and high precision synthesized clocks.
