Features: • FCC approved method of EMI attenuation• Provides up to 15 dB EMI reduction• Generates a low EMI spread spectrum clock and a non-spread reference clock of the input frequency• Optimized for frequency range from 10 MHz to 160 MHz P1818: 10 to 20 MHz P1819: 20 to 4...
P1822: Features: • FCC approved method of EMI attenuation• Provides up to 15 dB EMI reduction• Generates a low EMI spread spectrum clock and a non-spread reference clock of the input freq...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

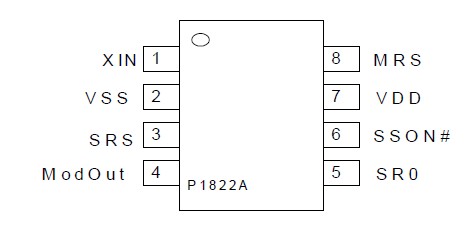

Symbol |
Parameter |
Rating |
Unit |
VDD, VIN |
Voltage on any pin with respect to GND |
-0.5 to +7.0 |
V |
TSTG |
Storage temperature |
-65 to +125 |
º C |
TA |
Operating temperature |
0 to +70 |
º C |
The P18xx is a versatile spread spectrum frequency modulator designed specifically for a wide range of input clock frequencies from 10 to 160 MHz (see Input Frequency and Modulation Rate Selections). The P18xx can generate an EMI reduced clock from crystal, ceramic resonator, or system clock. The P18xx-A to P18xx-H offer various combinations of spread options and percentage deviations (see Spread Deviation Selections). These combinations include Down Spread, Center Spread and percentage deviation range from ±0.625% to -3.50%.
The P18xx reduces electromagnetic interference (EMI) at the clock source, allowing a system wide EMI reduction for all the down stream clocks and data dependent signals. The P18xx allows significant system cost savings by reducing the number of circuit board layers, ferrite beads, shielding, and other passive components that are traditionally required to pass EMI regulations.
The P18xx modulates the output of a single PLL in order to "spread" the bandwidth of a synthesized clock, thereby decreasing the peak amplitudes of its harmonics. This results in significantly lower system EMI compared to the typical narrow band signal produced by oscillators and most clock generators. Lowering EMI by increasing a signal's bandwidth is called "spread spectrum clock generation".
The P18xx uses the most efficient and optimized modulation profile approved by the FCC and is implemented by using a proprietary all-digital method.
