P1167.362NLT

Power Inductors 3.6uH 30%

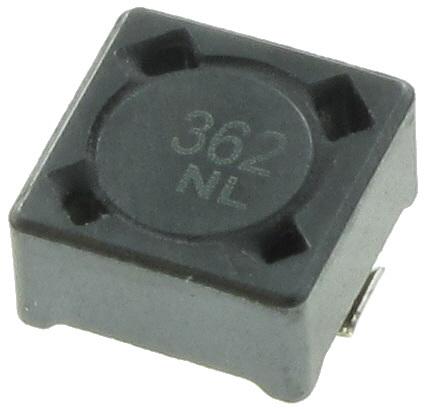

product image

P1167.362NLT Picture
SeekIC No. : 001182201 Detail

P1167.362NLT: Power Inductors 3.6uH 30%

floor Price/Ceiling Price

US $ .61~.94 / Piece | Get Latest Price
Part Number:
P1167.362NLT
Mfg:
Pulse
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~50
  • 50~100
  • Unit Price
  • $.94
  • $.89
  • $.83
  • $.61
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Inductance : 3.6 uH Tolerance : 30 %
Maximum DC Current : 3.1 Amps Maximum DC Resistance : 20 mOhms
Operating Temperature Range : - 40 C to + 130 C Dimensions : 7.54 mm W x 7.54 mm L x 4.5 mm H
Shielding : Shielded Termination Style : SMD/SMT
Package / Case : 7.5 mm x 7.5 mm

Description

Self Resonant Frequency :
Q Minimum :
Termination Style : SMD/SMT
Shielding : Shielded
Operating Temperature Range : - 40 C to + 130 C
Tolerance : 30 %
Maximum DC Resistance : 20 mOhms
Inductance : 3.6 uH
Maximum DC Current : 3.1 Amps
Dimensions : 7.54 mm W x 7.54 mm L x 4.5 mm H
Package / Case : 7.5 mm x 7.5 mm


Parameters:

Technical/Catalog InformationP1167.362NLT
VendorPulse (VA)
CategoryInductors, Coils, Chokes
Inductance2.3H
Tolerance±30%
Package / Case0.295" L x 0.295" W x 0.188" H (7.50mm x 7.50mm x 4.80mm)
PackagingDigi-Reel?
TypeDrum Core
Current 3.1A
Mounting TypeSurface Mount
Q @ Freq-
Self Resonant Freq40MHz
DC Resistance (DCR)20.00 mOhm Max
ShieldingShielded
ApplicationsGeneral Purpose
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names P1167 362NLT
P1167362NLT
553 1075 6 ND
55310756ND
553-1075-6
