Product Details

Description



Features:

• Single chip 1/4" lens video camera
• Composite video: NTSC
• Sensitivity boost (+27 dB)/AGC ON/OFF
• Automatic exposure/gain/white balance
• External frame sync capability
• Aperture correction
• SCCB programmable controls:
    Color saturation
    Brightness
    Hue
    White balance
    Exposure
    Gain
    Gamma curve
    Aperture correction
• Gamma correction (0.45) ON/OFF
• Low power consumption
• +5 volt only power supply
• Wide dynamic range, anti-blooming, zero smearing



Application

• Video Conferencing
• Video Phones
• Video E-mail
• PC Multimedia
• Toys
• Security
• Surveillance
• Finger Printing
• Medical and Dental Equipment



Pinout

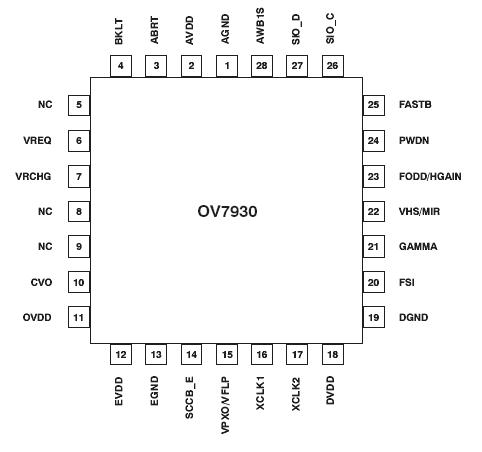

  Connection Diagram


Description

The OV7930 (color) is a high performance quarter-inch CMOS CAMERACHIPTM designed for all applications requiring a small footprint, low voltage, low power consumption and low cost color video camera.

The OV7930 supports NTSC composite video output and can directly interface with a VCR TV monitor or other 75 ohm terminated input with 2X standard TV signal range. The OV7930 CAMERACHIPs require only a single 5-volt DC power supply and have been designed for very low power operation.
