OPA694

Features:  UNITY GAIN STABLE BANDWIDTH: 1.5GHz HIGH GAIN OF 2V/V BANDWIDTH: 690MHz LOW SUPPLY CURRENT: 5.8mA HIGH SLEW RATE: 1700V/µsec HIGH FULL-POWER BANDWIDTH: 675MHz LOW DIFFERENTIAL GAIN/PHASE: 0.03%/0.015° Pb-FREE AND GREEN SOT23-5 PACKAGEPinoutSpecificationsPower Supply . . . ....

product image

OPA694 Picture
See larger image
SeekIC No. : 004438496 Detail

OPA694: Features:  UNITY GAIN STABLE BANDWIDTH: 1.5GHz HIGH GAIN OF 2V/V BANDWIDTH: 690MHz LOW SUPPLY CURRENT: 5.8mA HIGH SLEW RATE: 1700V/µsec HIGH FULL-POWER BANDWIDTH: 675MHz LOW DIFFERENTIAL...

OPA694 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
OPA694
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 UNITY GAIN STABLE BANDWIDTH: 1.5GHz
 HIGH GAIN OF 2V/V BANDWIDTH: 690MHz
 LOW SUPPLY CURRENT: 5.8mA
 HIGH SLEW RATE: 1700V/µsec
 HIGH FULL-POWER BANDWIDTH: 675MHz
 LOW DIFFERENTIAL GAIN/PHASE: 0.03%/0.015°
 Pb-FREE AND GREEN SOT23-5 PACKAGE


Pinout

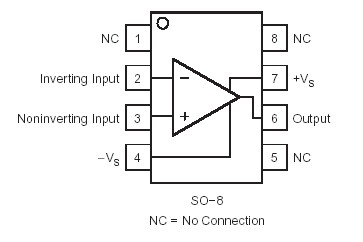

Connection Diagram


Specifications

Power Supply  . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .±6.5VDC
Internal Power Dissipation  . . . . . . .See Thermal Characteristics
Differential Input Voltage  . . . . . . . . . . . . . . . . . . . . . . . . .±1.2V
Input Voltage Range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±VS
Storage Temperature Range: D, DBV  . . . . . −40°C to +125°C
Lead Temperature (soldering, 10s)  . . . . . . . . . . . . . . ..+300°C
Junction Temperature (TJ)  . . . . . . . . . . . . . . . . . . . . . ..+150°C
ESD Rating:
Human Body Model (HBM)  . . . . . . . . . . . . . . . . . . . . . . . . 1500V
Charge Device Model (CDM)  . . . . . . . . . . . . . . . . . . . . . . .1000V
Machine Model (MM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 100V


Description

The OPA694 is an ultra-wideband, low-power, current feedback operational amplifier featuring high slew rate and low differential gain/phase errors. An improved output stage provides ±80mA output drive with < 1.5V output voltage headroom. Low supply current with > 500MHz bandwidth meets the requirements of high density video routers. Being a current feedback design, the OPA694 holds its bandwidth to very high gains-at a gain of 10, the OPA694 will still provide 200MHz bandwidth.

RF applications can use the OPA694 as a low-power SAW pre-amplifier. Extremely high 3rd-order intercept is provided through 70MHz at much lower quiescent power than many typical RF amplifiers.
The OPA694 is available in an industry-standard pinout in both SO-8 and SOT23-5 packages.
