OPA686

Features: ` HIGH BANDWIDTH: 250MHz (G = +10)` LOW INPUT VOLTAGE NOISE: 1.3nV/ÖHz` VERY LOW DISTORTION: 90dBc (5MHz)` HIGH SLEW RATE: 600V/ms` HIGH DC ACCURACY` LOW SUPPLY CURRENT: 12mA` HIGH GAIN BANDWIDTH PRODUCT: 1600MHz` STABLE FOR GAINS7Application· HIGH DYNAMIC RANGE ADC PREAMP· LOW NOIS...

product image

OPA686 Picture
SeekIC No. : 004438474 Detail

OPA686: Features: ` HIGH BANDWIDTH: 250MHz (G = +10)` LOW INPUT VOLTAGE NOISE: 1.3nV/ÖHz` VERY LOW DISTORTION: 90dBc (5MHz)` HIGH SLEW RATE: 600V/ms` HIGH DC ACCURACY` LOW SUPPLY CURRENT: 12mA` HIGH GA...

floor Price/Ceiling Price

Part Number:
OPA686
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` HIGH BANDWIDTH: 250MHz (G = +10)
` LOW INPUT VOLTAGE NOISE: 1.3nV/ÖHz
` VERY LOW DISTORTION: 90dBc (5MHz)
` HIGH SLEW RATE: 600V/ms
` HIGH DC ACCURACY
` LOW SUPPLY CURRENT: 12mA
` HIGH GAIN BANDWIDTH PRODUCT: 1600MHz
` STABLE FOR GAINS7



Application

· HIGH DYNAMIC RANGE ADC PREAMP
· LOW NOISE, WIDEBAND, TRANSIMPEDANCE AMPLIFIER
· WIDEBAND, HIGH GAIN AMPLIFIER
· LOW NOISE DIFFERENTIAL RECEIVER
· VDSL LINE RECEIVER
· ULTRASOUND CHANNEL AMPLIFIER
· IMPROVED REPLACEMENT FOR THE CLC425



Pinout

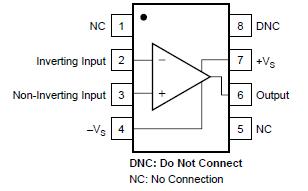

  Connection Diagram


Specifications

Power Supply ............................................................................... ±6.5VDC
Internal Power Dissipation ...................................... See Thermal Analysis
Differential Input Voltage ............................................................... ±1.2V
Input Voltage Range ......................................................................... ±VS
Storage Temperature Range: U, N .................................40 to +125
Lead Temperature (soldering, 10s) .............................................. +300
Junction Temperature (TJ ) ........................................................... +175



Description

The OPA686 combines very high gain bandwidth and large signal performance with very low input voltage noise while dissipating a low 12mA supply current. The classical differential input stage, along with two stages of forward gain and a high power output stage, combine to make the OPA686 an exceptionally low distortion amplifier with excellent DC accuracy and output drive. The voltage feedback architecture allows all standard op amp applications to be implemented with very high performance.

The combination of low input voltage and current noise, along with a 1.6GHz gain bandwidth product, make the OPA686 an ideal amplifier for wideband transimpedance stages. As a voltage gain stage, the device is optimized for a flat response at a gain of +10 and is guaranteed stable down to a noise gain of +7.

High Gain, 20MHz Transimpedance Amplifier TM A new external compensation technique can be used to give a very flat frequency response below the minimum stable gain for the OPA686, further improving its already exceptional distortion performance. Using this compensation makes the device one of the premier 12- to 14-bit analog-to-digital converter input drivers. The supply current for the OPA686 is precisely trimmed to 12.4mA at +25. This, along with carefully defined supply current tempcos in the input and output stages, combine to provide exceptional performance over the full specified temperature range.
