Features: · GAIN = +2 BANDWIDTH (900MHz)· GAIN = +8 BANDWIDTH (420MHz)· OUTPUT VOLTAGE SWING: ±3.6V· ULTRA-HIGH SLEW RATE: 4200V/ms· 3RD-ORDER INTERCEPT: > 40dBm (f < 50MHz)· LOW POWER: 129mW· LOW DISABLED POWER: 3mWApplication· LOW COST PRECISION IF AMPLIFIER· CABLE MODEM UPSTREAM DRIVER· B...

product image

OPA685 Picture
SeekIC No. : 004438470 Detail

OPA685: Features: · GAIN = +2 BANDWIDTH (900MHz)· GAIN = +8 BANDWIDTH (420MHz)· OUTPUT VOLTAGE SWING: ±3.6V· ULTRA-HIGH SLEW RATE: 4200V/ms· 3RD-ORDER INTERCEPT: > 40dBm (f < 50MHz)· LOW POWER: 129mW·...

floor Price/Ceiling Price

Part Number:
OPA685
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· GAIN = +2 BANDWIDTH (900MHz)
· GAIN = +8 BANDWIDTH (420MHz)
· OUTPUT VOLTAGE SWING: ±3.6V
· ULTRA-HIGH SLEW RATE: 4200V/ms
· 3RD-ORDER INTERCEPT: > 40dBm (f < 50MHz)
· LOW POWER: 129mW
· LOW DISABLED POWER: 3mW



Application

· LOW COST PRECISION IF AMPLIFIER
· CABLE MODEM UPSTREAM DRIVER
· BROADBAND VIDEO LINE DRIVER
· VERY WIDEBAND ADC BUFFER
· PORTABLE INSTRUMENTS
· ACTIVE FILTERS
· ARB WAVEFORM OUTPUT DRIVER



Pinout

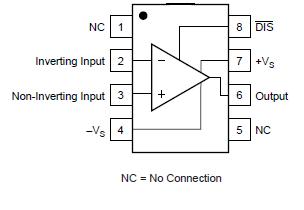

  Connection Diagram


Specifications

Power Supply ..............................................................................±6.5VDC
Internal Power Dissipation ................................ See Thermal Information
Differential Input Voltage ............................................................... ±1.2V
Input Voltage Range ......................................................................... ±VS
Storage Temperature Range: U, N .................................40 to +125
Lead Temperature (soldering, 10s) .............................................. +300
Junction Temperature (TJ ) ........................................................... +175



Description

The OPA685 is a very high bandwidth, current-feedback op amp that combines exceptional 4200V/ms slew rate and low input voltage noise to deliver a precision low cost, high dynamic range Intermediate Frequency (IF) amplifier. Optimized for high gain operation, the OPA685 is ideally suited to buffering Surface Acoustic Wave (SAW) filters in an IF strip or delivering high output power at low distortion for cable modem upstream line drivers. Even higher bandwidth at lower gains gives a 900MHz video line driver for high resolution workstation graphics.

The OPA685's low 12.9mA supply current is precisely trimmed at +25. This trim, along with a low temperature drift, guarantees low system power over-temperature. System power may be further reduced using the optional disable control pin. Leaving this pin open, or holding it HIGH, gives normal operation. If pulled LOW, the OPA685 supply current drops to less than 320mA. This power-savings feature, along with exceptional single +5V operation, and ultra-small SOT23-6 packaging, make the OPA685 ideal for portable communications requirements.
