OPA680

Features: `WIDEBAND +5V OPERATION: 220MHz (G = 2)`UNITY GAIN STABLE: 400MHz (G = 1)`HIGH OUTPUT CURRENT: 150mA`OUTPUT VOLTAGE SWING: ±4.0V`HIGH SLEW RATE: 1800V/s`LOW SUPPLY CURRENT: 6.4mA`LOW DISABLED CURRENT: 300A` ENABLE/DISABLE TIME: 25ns/100nsApplication· VIDEO LINE DRIVER·xDSL LINE DRIVER/RE...

product image

OPA680 Picture
SeekIC No. : 004438455 Detail

OPA680: Features: `WIDEBAND +5V OPERATION: 220MHz (G = 2)`UNITY GAIN STABLE: 400MHz (G = 1)`HIGH OUTPUT CURRENT: 150mA`OUTPUT VOLTAGE SWING: ±4.0V`HIGH SLEW RATE: 1800V/s`LOW SUPPLY CURRENT: 6.4mA`LOW DISAB...

floor Price/Ceiling Price

Part Number:
OPA680
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` WIDEBAND +5V OPERATION: 220MHz (G = 2)
` UNITY GAIN STABLE: 400MHz (G = 1)
` HIGH OUTPUT CURRENT: 150mA
` OUTPUT VOLTAGE SWING: ±4.0V
` HIGH SLEW RATE: 1800V/s
` LOW SUPPLY CURRENT: 6.4mA
` LOW DISABLED CURRENT: 300A
` ENABLE/DISABLE TIME: 25ns/100ns



Application

· VIDEO LINE DRIVER
·xDSL LINE DRIVER/RECEIVER
· HIGH SPEED IMAGING CHANNELS
·ADC BUFFERS
· PORTABLE INSTRUMENTS
·TRANSIMPEDANCE AMPLIFIERS
·ACTIVE FILTERS



Pinout

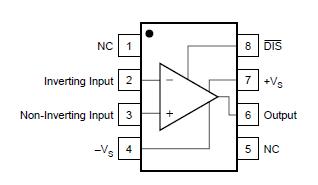

  Connection Diagram


Specifications

Power Supply .............................................................................±6.5VDC
Internal Power Dissipation ..................................... See Thermal Analysis
Differential Input Voltage .............................................................. ±1.2V
Input Voltage Range ..........................................................................±VS
Storage Temperature Range: P, U, N ............................ 40 to +125
Lead Temperature (soldering, 10s) .............................................. +300
Junction Temperature (TJ ) ........................................................... +175



Description

The OPA680 represents a major step forward in unity gain stable, voltage feedback op amps. A new internal architecture provides slew rate and full power bandwidth previously found only in wideband current feedback op amps. A new output stage architecture delivers high currents with a minimal headroom requirement. These combine to give exceptional single supply operation. Using a single +5V supply, the  device can deliver a 1V to 4V output swing with over 100mA drive current and 150MHz bandwidth. This combination of features makes the OPA680 an ideal RGB line driver or single supply ADC input driver.

The OPA680's low 6.4mA supply current is precisely trimmed at 25. This trim, along with low temperature drift, guarantees lower maximum supply current than competing products. System power may be reduced further using the optional disable control pin. Leaving this disable pin open, or holding it high, will operate the OPA680 normally.

If pulled low, the OPA680 supply current drops to less than 300mA while the output goes to a high impedance state. This feature may be used for either power savings or to implement video MUX applications.
