Product Details

Description



Features:

*FAST SETTLING: 9ns (1%)
*WIDE BANDWIDTH: 185MHz (AV = 10)
*LOW OFFSET VOLTAGE: ±250µV
*TWO LOGIC SELECTABLE INPUTS
*FAST INPUT SWITCHING: 8ns (TTL)
*16-PIN DIP PACKAGE


Application

*PROGRAMMABLE-GAIN AMPLIFIER
*FAST 2-INPUT MULTIPLEXER
*SYNCHRONOUS DEMODULATOR
*PULSE/RF AMPLIFIERS
*VIDEO AMPLIFIERS
*ACTIVE FILTERS


Pinout

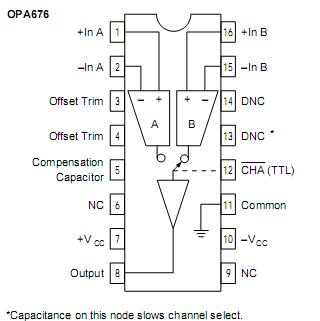

Connection Diagram




Specifications

Supply...........................................................................................±7VDC
Differential Input Voltage..........................................................Total VCC
Input Voltage Range (Analog and Digital).......................................±VCC
Storage Temperature Range......................................65°C to +150°C
Lead Temperature (soldering, 10s).............................................+300°C
Output Short Circuit to Ground (+25°C)................Continuous to ground
Junction Temperature..................................................................+175°C


Description

The OPA675 and OPA676 are wideband monolithic operational amplifiers with two  independent differen-tial inputs. Either input can be selected by an external logic signal. The OPA675 is compatible with ECL logic while the OPA676 is TTL compatible. Both amplifiers are externally compensated and feature very fast input selection speed:  ECL = 4ns, TTL = 6ns. This amplifier features fully symmetrical differential inputs due to its"classical" operational amplifier circuit architecture.Unlike "current-feedback" amplifier designs, the OPA675/676 may be used in all op amp applications requiring high speed and precision.

Low distortion and crosstalk make these amplifiers suitable for RF and video applications.

The OPA675 and OPA676 are available in KG (0°C to+70°C) and SG (55°C to +125°C) grades. All grades are packaged in a 16-pin DIP.
