OPA660

Features: ` WIDE BANDWIDTH: 850MHz`HIGH SLEW RATE: 3000V/s` LOW DIFFERENTIAL GAIN/PHASE ERROR: 0.06%/0.02°` VERSATILE CIRCUIT FUNCTION` EXTERNAL IQ-CONTROLApplication· BASE LINE RESTORE CIRCUITS· VIDEO/BROADCAST EQUIPMENT· COMMUNICATIONS EQUIPMENT· HIGH-SPEED DATA ACQUISITION· WIDEBAND LED DRIVER·...

product image

OPA660 Picture
SeekIC No. : 004438447 Detail

OPA660: Features: ` WIDE BANDWIDTH: 850MHz`HIGH SLEW RATE: 3000V/s` LOW DIFFERENTIAL GAIN/PHASE ERROR: 0.06%/0.02°` VERSATILE CIRCUIT FUNCTION` EXTERNAL IQ-CONTROLApplication· BASE LINE RESTORE CIRCUITS· VI...

floor Price/Ceiling Price

Part Number:
OPA660
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` WIDE BANDWIDTH: 850MHz
`HIGH SLEW RATE: 3000V/s
` LOW DIFFERENTIAL GAIN/PHASE ERROR: 0.06%/0.02°
` VERSATILE CIRCUIT FUNCTION
` EXTERNAL IQ-CONTROL



Application

· BASE LINE RESTORE CIRCUITS
· VIDEO/BROADCAST EQUIPMENT
· COMMUNICATIONS EQUIPMENT
· HIGH-SPEED DATA ACQUISITION
· WIDEBAND LED DRIVER
· AGC-MULTIPLIER
· NS-PULSE INTEGRATOR
· CONTROL LOOP AMPLIFIER
· 400MHz DIFFERENTIAL INPUT AMPLIFIER



Pinout

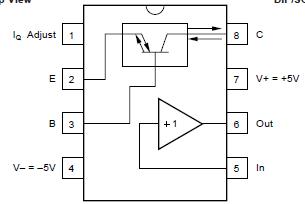

  Connection Diagram


Specifications

Power Supply Voltage ....................................................................... ±6V
Input Voltage(1) ..................................................................... ±VS ±0.7V
Operating Temperature ................................................... 40 to +85
Storage Temperature..................................................... 40 to +125
Junction Temperature ....................................................................+175
Lead Temperature (soldering, 10s) ...............................................+300
NOTE: (1) Inputs are internally diode-clamped to ±VS.



Description

The OPA660 is a versatile monolithic component designed for wide-bandwidth systems including high performance video, RF and IF circuitry. It includes a wideband, bipolar integrated voltage-controlled current source and voltage buffer amplifier.

The voltage-controlled current source or Operational Transconductance Amplifier (OTA) can be viewed as an "ideal transistor." Like a transistor, it has three terminals-a high-impedance input (base), a lowimpedance input/output (emitter), and the current output (collector). The OTA, however, is self-biased and bipolar. The output current is zero-for-zero differential input voltage. AC inputs centered about zero produce an output current which is bipolar and centered about zero. The transconductance of the OTA can be adjusted with an external resistor, allowing bandwidth, quiescent current and gain trade-offs to be optimized.

The open-loop buffer amplifier provides 850MHz bandwidth and 3000V/ms slew rate. Used as a basic building block, the OPA660 simplifies the design of AGC amplifiers, LED driver circuits for Fiber Optic Transmission, integrators for fast pulses, fast control loop amplifiers, and control amplifiers for capacitive sensors and active filters.

The OPA660 is packaged in SO-8 surface-mount, and 8-pin plastic DIP, specified from 40 to +85.
