OPA643

Features: `LOW DISTORTION: 90dBc at 5MHz`LOW NOISE: 2.3nV/Hz`GAIN-BANDWIDTH PRODUCT: 800MHz`AVAILABLE IN SOT23-5 PACKAGE`STABLE IN GAINS 3`HIGH SLEW RATE: 1000V/s`HIGH OPEN-LOOP GAIN: 95dB`HIGH OUTPUT CURRENT: ±60mAApplication·BASE STATION ADC PREAMP·ADC/DAC BUFFER AMPLIFIER·LOW DISTORTION IF AMP...

product image

OPA643 Picture
SeekIC No. : 004438416 Detail

OPA643: Features: `LOW DISTORTION: 90dBc at 5MHz`LOW NOISE: 2.3nV/Hz`GAIN-BANDWIDTH PRODUCT: 800MHz`AVAILABLE IN SOT23-5 PACKAGE`STABLE IN GAINS 3`HIGH SLEW RATE: 1000V/s`HIGH OPEN-LOOP GAIN: 95dB`HIGH OUT...

floor Price/Ceiling Price

Part Number:
OPA643
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`LOW DISTORTION: 90dBc at 5MHz
`LOW NOISE: 2.3nV/Hz
`GAIN-BANDWIDTH PRODUCT: 800MHz
`AVAILABLE IN SOT23-5 PACKAGE
`STABLE IN GAINS 3
`HIGH SLEW RATE: 1000V/s
`HIGH OPEN-LOOP GAIN: 95dB
`HIGH OUTPUT CURRENT: ±60mA



Application

·BASE STATION ADC PREAMP
·ADC/DAC BUFFER AMPLIFIER
·LOW DISTORTION IF AMPLIFIER
·LOW NOISE, BROADBAND, TRANSIMPEDANCE AMPLIFIER
·LOW NOISE PREAMPLIFIER
·VIDEO AMPLIFICATION
·TEST INSTRUMENTATION



Pinout

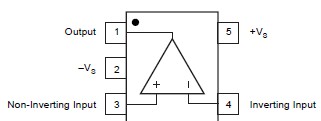

  Connection Diagram


Specifications

Power Supply (±VS) ..................................................................... ±6.0VDC
Internal Power Dissipation(1) .................................. See Thermal Analysis
Differential Input Voltage .................................................................. ±1.2V
Input Voltage Range ............................................................................ ±VS
Storage Temperature Range: P, PB, U, UB, N, NB ........ 40°C to +125°C
Lead Temperature (soldering, 10s) .............................................. +300°C
(soldering, SO-8 3s) ..................................................................... +260°C
Junction Temperature (TJ ) ............................................................ +175°C
NOTE: (1) Packages must be derated based on specified JA. Maximum TJ must be observed.



Description

The OPA643 provides a level of speed and dynamic range previously unattainable in a monolithic op amp. Using a de-compensated voltage feedback architecture with two internal gain stages, the OPA643 achieves exceptionally low harmonic distortion over a wide frequency range. The "classic" differential input provides all the familiar benefits of precision op amps, such as bias current cancellation and very low inverting current noise compared with wideband current feedback op amps. High slew rate and open-loop gain, along with low input noise and high output current drive make the OPA643 ideal for very high dynamic range requirements.

The high gain bandwidth product for the gain 3 stable OPA643 makes it particularly suitable for wideband transimpedance amplifiers and moderate gain IF amplifier applications. External compensation techniques may be used to apply the OPA643 at low gains giving exceptionally low distortion and frequency response flatness. Where unity gain stability with comparable distortion performance is required, consider the OPA642.
