OPA640

Features: ` UNITY-GAIN BANDWIDTH: 1.3GHz` UNITY-GAIN STABLE` LOW NOISE: 2.9nV/ÖHz` LOW HARMONICS: 75dBc at 10MHz` HIGH COMMON MODE REJECTION: 85dB` HIGH SLEW RATE: 350V/sApplication· COMMUNICATIONS· MEDICAL IMAGING· TEST EQUIPMENT· CCD IMAGING·ADC/DAC GAIN AMPLIFIER·HIGH-RESOLUTION VIDEO·LOW ...

product image

OPA640 Picture
See larger image
SeekIC No. : 004438399 Detail

OPA640: Features: ` UNITY-GAIN BANDWIDTH: 1.3GHz` UNITY-GAIN STABLE` LOW NOISE: 2.9nV/ÖHz` LOW HARMONICS: 75dBc at 10MHz` HIGH COMMON MODE REJECTION: 85dB` HIGH SLEW RATE: 350V/sApplication· COMMUNICAT...

OPA640 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
OPA640
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` UNITY-GAIN BANDWIDTH: 1.3GHz
` UNITY-GAIN STABLE
` LOW NOISE: 2.9nV/ÖHz
` LOW HARMONICS: 75dBc at 10MHz
` HIGH COMMON MODE REJECTION: 85dB
` HIGH SLEW RATE: 350V/s


Application

· COMMUNICATIONS
· MEDICAL IMAGING
· TEST EQUIPMENT
· CCD IMAGING
·ADC/DAC GAIN AMPLIFIER
·HIGH-RESOLUTION VIDEO
·LOW NOISE PREAMPLIFIER
· DIFFERENTIAL AMPLIFIER
·ACTIVE FILTERS

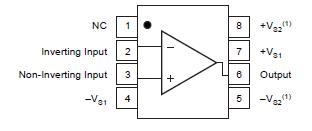

Pinout

Connection Diagram


Specifications

Power Supply ..............................................................................±5.5VDC
Internal Power Dissipation .................................. Thermal Considerations
Differential Input Voltage ................................................................±1.2V
Input Voltage Range ......................................................................... ±VS
Storage Temperature Range: P, U, UB .......................... 40 to +125
Lead Temperature (soldering, 10s) .............................................. +300
(soldering, SO-8 3s) ...................................................................... +260
Junction Temperature (TJ ) ............................................................ +175


Description

The OPA640 is an extremely wideband operational amplifier featuring low noise, high common-mode rejection and high spurious free dynamic range.

The OPA640 is internally compensated for unity-gain stability. This amplifier has a fully symmetrical differential input due to its "classical" operational amplifier circuit architecture. This allows the OPA640 to be used in all op amp applications requiring high speed and precision.

Low noise, wide bandwidth, and high linearity make this amplifier suitable for a variety of RF and video applications.
