OPA637

Features: ` VERY LOW NOISE: 4.5nV/Hz at 10kHz` FAST SETTLING TIME: OPA627-550ns to 0.01% OPA637-450ns to 0.01%` LOW VOS: 100mV max` LOW DRIFT: 0.8mV/°C max` LOW IB: 5pA max` OPA627: Unity-Gain Stable` OPA637: Stable in Gain 5Application·PRECISION INSTRUMENTATION·FAST DATA ACQUISITION·DAC OUTPUT A...

product image

OPA637 Picture
See larger image
SeekIC No. : 004438398 Detail

OPA637: Features: ` VERY LOW NOISE: 4.5nV/Hz at 10kHz` FAST SETTLING TIME: OPA627-550ns to 0.01% OPA637-450ns to 0.01%` LOW VOS: 100mV max` LOW DRIFT: 0.8mV/°C max` LOW IB: 5pA max` OPA627: Unity-Gain Stabl...

OPA637 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
OPA637
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` VERY LOW NOISE: 4.5nV/Hz at 10kHz
` FAST SETTLING TIME: OPA627-550ns to 0.01% OPA637-450ns to 0.01%
` LOW VOS: 100mV max
` LOW DRIFT: 0.8mV/°C max
` LOW IB: 5pA max
` OPA627: Unity-Gain Stable
` OPA637: Stable in Gain 5


Application

·PRECISION INSTRUMENTATION
·FAST DATA ACQUISITION
·DAC OUTPUT AMPLIFIER
·OPTOELECTRONICS
·SONAR, ULTRASOUND
·HIGH-IMPEDANCE SENSOR AMPS
·HIGH-PERFORMANCE AUDIO CIRCUITRY
·ACTIVE FILTERS

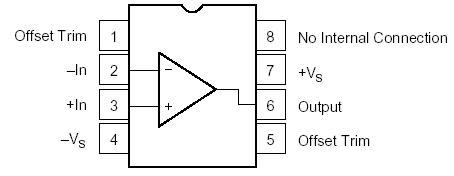

Pinout

Connection Diagram


Specifications

Supply Voltage .........................................................................±18V
Input Voltage Range ......................................+VS + 2V to VS 2V
Differential Input Range .............................................. Total VS + 4V
Power Dissipation .............................................................. 1000mW
Operating Temperature
M Package .........................................................55°C to +125°C
P, U Package .....................................................40°C to +125°C
Storage Temperature
M Package ........................................................65°C to +150°C
P, U Package ....................................................40°C to +125°C
Junction Temperature
M Package ........................................................................ +175°C
P, U Package .....................................................................+150°C
Lead Temperature (soldering, 10s) ...................................+300°C
SOlC (soldering, 3s) .......................................................... +260°C
NOTE: (1) Stresses above these ratings may cause permanent damage.


Description

The OPA627 and OPA637 Difet operational amplifiers provide a new level of performance in a precision FET op amp. When compared to the popular OPA111 op amp, the OPA627/637 has lower noise, lower offset voltage, and much higher speed. It is useful in a broad range of precision and high speed analog circuitry.

The OPA627/637 is fabricated on a high-speed, dielectrically-isolated complementary NPN/PNP process. It operates over a wide range of power supply voltage-±4.5V to ±18V. Laser-trimmed Difet input circuitry provides high accuracy and low-noise performance comparable with the best bipolar-input op amps.

High frequency complementary transistors allow increased circuit bandwidth, attaining dynamic performance not possible with previous precision FET op amps. The OPA627 is unity-gain stable. The OPA637 is stable in gains equal to or greater than five.

Difet fabrication achieves extremely low input bias currents without compromising input voltage noise performance. Low input bias current is maintained over a wide input common-mode voltage range with unique cascode circuitry.

The OPA627/637 is available in plastic DIP, SOIC and metal TO-99 packages. Industrial and military temperature range models are available.
