Features:

` EXCELLENT DIFFERENTIAL GAIN: 0.015%
` EXCELLENT DIFFERENTIAL PHASE: 0.015°
` LOW DISTORTION: 90dB SFDR
` TWO-TONE THIRD-ORDER INTERCEPT: 60dBm
` LOW NOISE: 2.5nV/ÖHz
` LOW NOISE FIGURE: 9dB
` BANDWIDTH (Gain = +1): 160MHz
` 0.1dB GAIN FLATNESS: 30MHz
` LOW OFFSET VOLTAGE: 500V



Application

· BROADCAST QUALITY VIDEO
· MEDICAL IMAGING
· LOW NOISE PREAMPLIFIER
· PRECISION ADC/DAC BUFFER
·TELECOMMUNICATIONS
·ANALYTICAL INSTRUMENTS
·ACTIVE FILTERS
·DC RESTORATION CIRCUITS



Pinout

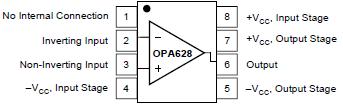

  Connection Diagram


Specifications

Supply ............................................................................................ ±7VDC
Internal Power Dissipation(1) ...................... See Applications Information
Differential Input Voltage ..................................................................... 5V
Input Voltage Range ................................... See Applications Information
Storage Temperature Range: AP, AU ............................. 55 to +125
Lead Temperature (soldering, SOIC 3s) ........................................ +260
Output Short Circuit to Ground (+25) ................. Continuous to Ground
Junction Temperature (TJ ) ............................................................ +175
NOTE: (1) Packages must be derated based on specified JA. Maximum TJ must be observed.



Description

The OPA628 is a low distortion, wideband operational amplifier. It features low differential gain error of 0.015% and low differential phase error of 0.015° at NTSC and PAL frequencies with a 150W load (a backterminated 75W cable). The 0.1dB gain flatness to 30MHz, and the excellent differential gain and phase make the OPA628 ideal for broadcast quality video applications. In addition, the spurious free dynamic range of 90dB makes the OPA628 an excellent choice to buffer the input of precision Analog-to-Digital converters.

It can also be used to provide a buffer for the output of precision high speed Digital-to-Analog converters.

The two-tone third-order intercept of the OPA628 is 60dBm.

The device is a unity gain stable, voltage feedback operational amplifier. It has all of the benefits associated with voltage feedback amplifiers including high input impedance, high common mode rejection, and symmetrical differential input flexibility. The unity gain bandwidth of the device is 160MHz. The low noise of 2.5nV/ÖHz and low noise figure of 9dB (RS = 50W) make it very useful in precision applications requiring wide dynamic range.

The superior distortion performance of the OPA628 is achieved by its multistage architecture which provides high open-loop gain. The distortion performance isadditionally enhanced by separating the power supplies to the input and output stages requiring four power supply connections as shown in the block diagram below. This separation of supplies eliminates the effects of package and wire bond parasitic capacitance and inductance. The device is powered with ±5VDC supplies for low power dissipation. The OPA628 is available in 8-pin SOIC package. The temperature range is 40 to +85.
