OPA357

Features: UNITY-GAIN BANDWIDTH: 250MHzWIDE BANDWIDTH: 100MHz GBWHIGH SLEW RATE: 150V/sLOW NOISE: 6.5nV/Hz</a>RAIL-TO-RAIL I/OHIGH OUTPUT CURRENT: > 100mAEXCELLENT VIDEO PERFORMANCE:-Diff Gain: 0.02%, Diff Phase: 0.090-0.1dB Gain Flatness: 40MHzLOW INPUT BIAS CURRENT: 3pAQUIESCENT CURRENT:...

product image

OPA357 Picture
See larger image
SeekIC No. : 004438276 Detail

OPA357: Features: UNITY-GAIN BANDWIDTH: 250MHzWIDE BANDWIDTH: 100MHz GBWHIGH SLEW RATE: 150V/sLOW NOISE: 6.5nV/Hz</a>RAIL-TO-RAIL I/OHIGH OUTPUT CURRENT: > 100mAEXCELLENT VIDEO PERFORMANCE:-Diff Ga...

OPA357 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
OPA357
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

UNITY-GAIN BANDWIDTH: 250MHz
WIDE BANDWIDTH: 100MHz GBW
HIGH SLEW RATE: 150V/s
LOW NOISE: 6.5nV/Hz</a>
RAIL-TO-RAIL I/O
HIGH OUTPUT CURRENT: > 100mA
EXCELLENT VIDEO PERFORMANCE:
-Diff Gain: 0.02%, Diff Phase: 0.090
-0.1dB Gain Flatness: 40MHz
LOW INPUT BIAS CURRENT: 3pA
QUIESCENT CURRENT: 4.9mA
THERMAL SHUTDOWN
SUPPLY RANGE: 2.5V to 5.5V
SHUTDOWN IQ < 6A
MicroSIZE AND PowerPADTM  PACKAGES




Application

-VIDEO PROCESSING
-ULTRASOUND
-OPTICAL NETWORKING, TUNABLE LASERS
-PHOTODIODE TRANSIMPEDANCE AMPS
-ACTIVE FILTERS
-HIGH-SPEED INTEGRATORS
-ANALOG-TO-DIGITAL (A/D) CONVERTER INPUT BUFFERS
-DIGITAL-TO-ANALOG (D/A) CONVERTER OUTPUT AMPLIFIERS
-BARCODE SCANNERS
-COMMUNICATIONS

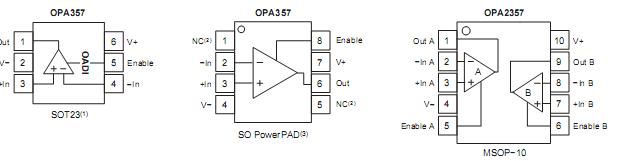

Pinout

Connection Diagram


Specifications

Supply Voltage, V+ to V−. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.5V
Signal Input Terminals Voltage(2). . . (V−) − (0.5V) to (V+) + (0.5V)
                                      Current(2). . . . . . . . . . . . . . . . . . . . . 10mA
Enable Input. . . . . . . . . . . . . . . . . . . .(V−) − (0.5V) to (V+) + (0.5V)
Output Short-Circuit(3). . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
Operating Temperature. . . . . . . . . . . . . . . . . . . .−55°C to +150°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . ..−65°C to +150°C
Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+150°C
Lead Temperature  (soldering, 10s). . . . . . . . . . . . . . . . . . .+300°C
