OPA354

Features:

UNITY-GAIN BANDWIDTH: 250MHz
WIDE BANDWIDTH: 100MHz GBW
HIGH SLEW RATE: 150V/s
LOW NOISE: 6.5nV/Hz
 RAIL-TO-RAIL I/O
HIGH OUTPUT CURRENT: > 100mA
EXCELLENT VIDEO PERFORMANCE:
   Diff Gain: 0.02%, Diff Phase: 0.09°
   0.1dB Gain Flatness: 40MHz
LOW INPUT BIAS CURRENT: 3pA
QUIESCENT CURRENT: 4.9mA
THERMAL SHUTDOWN
SUPPLY RANGE: 2.5V to 5.5V
MicroSIZE AND PowerPAD^TM PACKAGES


Application

VIDEO PROCESSING
ULTRASOUND
OPTICAL NETWORKING, TUNABLE LASERS
PHOTODIODE TRANSIMPEDANCE AMPS
ACTIVE FILTERS
HIGH-SPEED INTEGRATORS
ANALOG-TO-DIGITAL (A/D) CONVERTER
   INPUT BUFFERS
DIGITAL-TO-ANALOG (D/A) CONVERTER
   OUTPUT AMPLIFIERS
BARCODE SCANNERS
COMMUNICATIONS

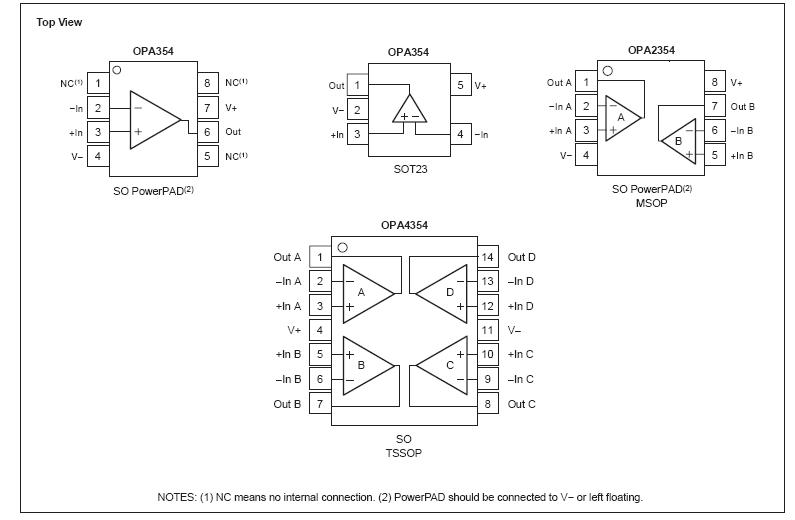

Pinout




Specifications

Supply Voltage, V+ to V− . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.5V
Signal Input Terminals Voltage     . .  . (V−) − (0.5V) to (V+) + (0.5V)
                                    Current. .  . .  . . . . . . . . . . . . . .  . . . . . 10mA
Output Short-Circuit. .  . . . . . . . . . . . . . . . . . . . . . .  . . . . Continuous
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . −55°C to +150°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . −65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C
Lead Temperature (soldering, 10s) . . . . . . . . . . . . . . . . . . . . . +300°C


Description

The OPA354 series of high-speed, voltage-feedback CMOS operational amplifiers are designed for video and other applications requiring wide bandwidth. They are unity-gain stable and can drive large output currents.Differential gain is 0.02% and differential phase is 0.09°.Quiescent current is only 4.9mA per channel.The OPA354 series op amps are optimized for operation on single or dual supplies as low as 2.5V (±1.25V) and up to 5.5V (±2.75V). Common-mode input range extends beyond the supplies. The output swing is within 100mV of the rails, supporting wide dynamic range.For applications requiring the full 100mA continuous output current, single and dual SO-8 PowerPAD versions are available.The single version (OPA354), is available in the tiny SOT23-5 and SO-8 PowerPAD packages. The dual version (OPA2354) comes in the miniature MSOP-8 and SO-8 PowerPAD packages. The quad version (OPA4354) is offered in TSSOP-14 and SO-14 packages.Multichannel versions feature completely independent circuitry for lowest crosstalk and freedom from interaction.All are specified over the extended −40°C to +125°C temperature range.
