Features:

Very Low-Noise, 5 nV/Hz @ 1 kHz Max
Excellent Input Offset Voltage, 0.4 mV Max
Low Offset Voltage Drift, 2 µV/ Max
Very High Gain, 1000 V/mV Min
Outstanding CMR, 110 dB Min
Slew Rate, 2 V/µs Typ
Gain-Bandwidth Product, 6 MHz Typ
Industry Standard Quad Pinouts
Available in Die Form

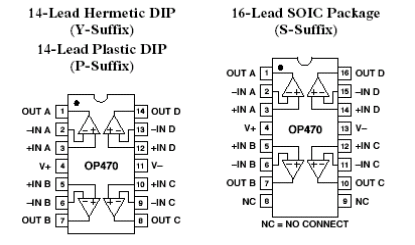

Pinout

  Connection Diagram

OP470 Diagram




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . . ±1.0 V
Differential Input Current2 . . . . . . . . . . . . . . . . . . . . ±25 mA
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . Supply Voltage
Output Short-Circuit Duration . . . . . . . . . . . . . . Continuous
Storage Temperature Range
P, Y Package . . . . . . . . . . . . . . . . . . . . . . 65 to +150
Lead Temperature Range (Soldering 60 sec) . . . . . . . 300
Junction Temperature (Tj) . . . . . . . . . . . . . . 65 to +150
Operating Temperature Range
OP470A . . . . . . . . . . . . . . . . . . . . . . . . . 55 to +125
OP470E, OP470F . . . . . . . . . . . . . . . . . . . 25 to +85
OP470G . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +85


-3dB Bandwidth 6MHz
Slew Rate 2V/s
Vos 400V
Ib 25nA
Input Noise (nV/rtHz) 3.2nV/rtHz
Vcc-Vee Supply (V) 9 to 36
Iq per Amplifier 2.75mA
# OpAmps per Pkg 4
Operating Temp Range -55 to +125
Packages DIP,LCC,SOIC





Description

The OP470 is a high-performance monolithic quad operational amplifier with exceptionally low voltage noise, 5 nV/Hz at 1 kHz max, offering comparable performance to ADI's industry standard OP27.

The OP470 features an input offset voltage below 0.4 mV, excellent for a quad op amp, and an offset drift under 2 mV/C, guaranteed over the full military temperature range. Open loop gain of the OP470 is over 1,000,000 into a 10 k load ensuring excellent gain accuracy and linearity, even in high gain applications. Input bias current is under 25 nA, which reduces errors due to signal source resistance. The OP470's CMR of over 110 dB and PSRR of less than 1.8 µV/V significantly reduce errors due to ground noise and power supply fluctuations. Power consumption of the quad OP470 is half that of four OP27s, a significant advantage for power conscious applications. The OP470 is unity-gain stable with a gain bandwidth product of 6 MHz and a slew rate of 2 V/µs.
The OP470 offers excellent amplifier matching which is important for applications such as multiple gain blocks, low noise instrumentation amplifiers, quad buffers, and low noise active filters.

The OP470 conforms to the industry standard 14-lead DIP pinout. It is pin compatible with the LM148/149, HA4741, HA5104, and RM4156 quad op amps and can be used to upgrade systems using these devices.

For higher speed applications, the OP471, with a slew rate of 8 V/µs, is recommended.
