Features:

Rail-to-Rail Input and Output Swing
Low Power: 60 mA/Amplifier
Gain Bandwidth Product: 450 kHz
Single-Supply Operation: +3 V to +12 V
Low Offset Voltage: 300 mV max
High Open-Loop Gain: 500 V/mV
Unity-Gain Stable
No Phase Reversal





Application

Battery Monitoring
Sensor Conditioners
Portable Power Supply Control
Portable Instrumentation





Pinout

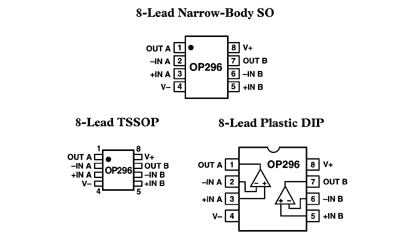

OP296 Diagram

  Connection Diagram






Specifications

-3dB Bandwidth 450kHz
Slew Rate 300mV/s
Vos 35V
Ib 10nA
Input Noise (nV/rtHz) 26nV/rtHz
Vcc-Vee Supply (V) 3 to 12
Iq per Amplifier (max) 60A
# OpAmps per Pkg 2
Operating Temp Range -40 to +125
Packages SOIC,SOP


Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +15 V
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +15 V
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . +15 V
Output Short Circuit Duration . . . . . . . . . . . . . . . . . Indefinite
Storage Temperature Range
P, S, RU Package . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
OP196G, OP296G, OP496G, H . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
P, S, RU Package . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . .+300°C





Description

The OP196 family of CBCMOS operational amplifiers features micropower operation and rail-to-rail input and output ranges.

The extremely low power requirements and guaranteed



The OP196 family of CBCMOS operational amplifiers features micropower operation and rail-to-rail input and output ranges.

The extremely low power requirements and guaranteed operation from +3 V to +12 V make these amplifiers perfectly suited to monitor battery usage and to control battery charging. Their dynamic performance, including 26 nV/ÖHz voltage noise density, recommends them for battery-powered audio applications. Capacitive loads to 200 pF are handled without oscillation.

The OP196/OP296/OP496 are specified over the HOT extended industrial (40°C to +125°C) temperature range. +3 V operation is specified over the 0°C to +125°C temperature range.

The single OP196 and the dual OP296 are available in 8-lead plastic DIP and SO-8 surface mount packages. The quad
OP496 is available in 14-lead plastic DIP and narrow SO-14 surface mount packages.
