Features:

Rail-to-Rail Output Swing
Single-Supply Operation: +3 V to +36 V
Low Offset Voltage: 300 mV
Gain Bandwidth Product: 75 kHz
High Open-Loop Gain: 1000 V/mV
Unity-Gain Stable
Low Supply Current/Per Amplifier: 150 A max





Application

Battery Operated Instrumentation
Servo Amplifiers
Actuator Drives
Sensor Conditioners
Power Supply Control





Pinout

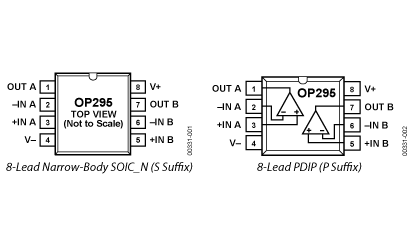

  Connection Diagram

OP295 Diagram




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±18 V
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±18 V
Differential Input Voltage2. . . . . . . . . . . . . . . . . . . . . . +36 V
Output Short-Circuit Duration . . . . . . . . . . . . . . . . Indefinite
Storage Temperature Range
P, S Package . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
Operating Temperature Range
OP295G, OP495G . . . . . . . . . . . . . . . . . . .40°C to +125°C
Junction Temperature Range
P, S Package . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 Sec) . . . . +300°C


-3dB Bandwidth 85kHz
Slew Rate 30mV/s
Vos 300V
Ib 20nA
Input Noise (nV/rtHz) 45nV/rtHz
Vcc-Vee Supply (V) 3 to 36
Iq per Amplifier 175A
# OpAmps per Pkg 2
Operating Temp Range -40 to +125
Packages DIP,SOIC





Description

Rail-to-rail output swing combined with dc accuracy are the key features of the OP495 quad and OP295 dual CBCMOS operational amplifiers. By using a bipolar front end, lower noise and higher accuracy than that of CMOS designs has been achieved.Both input and output ranges include the negative supply, providing the user "zero-in/zero-out" cap-ability. For users of 3.3 volt systems such as lithium batteries, the OP295/OP495 is specified for three volt operation.

Maximum offset voltage is specified at 300 mV for +5 volt operation,and the open-loop gain is a minimum of 1000 V/mV. This yields performance that can be used to implement high accuracy systems, even in single supply designs.

The ability to swing rail-to-rail and supply +15 mA to the load makes the OP295/OP495 an ideal driver for power tran-sistors and "H" bridges. This allows designs to achieve higher efficiencies and to transfer more power to the load th-an previously possible without the use of discrete components. For applications that require driving inductive loads, such as transformers, increases in efficiency are also possible. Stability while driving capacitive loads is another ben-efit of this design over CMOS rail-to-rail amplifiers. This is useful for driving coax cable or large FET transistors. The OP295/OP495 is stable with loads in excess of 300 pF.

The OP295 and OP495 are specified over the extended industrial (40°C to +125°C) temperature range. OP295s are available in 8-pin plastic and ceramic DIP plus SO-8 surface mount packages. OP495s are available in 14-pin plastic and SO-16 surface mount packages. Contact your local sales office for MIL-STD-883 data sheet.
