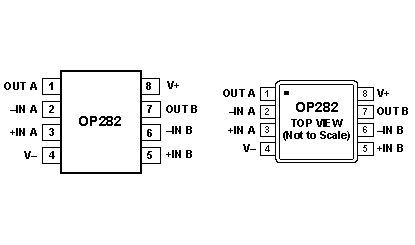

PinoutSpecifications -3dB Bandwidth 4MHz Slew Rate 9V/s Vos 200V Ib 3pA Input Noise (nV/rtHz) 36nV/rtHz Vcc-Vee Supply (V) 9 to 36 Iq per Amplifier 250A # OpAmps per Pkg 2 Operating Temp Range -40 to +85 Packages SOICDescriptionThe OP-282/OP482 dua...
OP282: PinoutSpecifications -3dB Bandwidth 4MHz Slew Rate 9V/s Vos 200V Ib 3pA Input Noise (nV/rtHz) 36nV/rtHz Vcc-Vee Supply (V) 9 to 36 Iq per Amplifier 250A # Op...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
-3dB Bandwidth | 4MHz |
Slew Rate | 9V/s |
Vos | 200V |
Ib | 3pA |
Input Noise (nV/rtHz) | 36nV/rtHz |
Vcc-Vee Supply (V) | 9 to 36 |
Iq per Amplifier | 250A |
# OpAmps per Pkg | 2 |
Operating Temp Range | -40 to +85 |
Packages | SOIC |
The OP-282/OP482 dual and quad operational amplifiers feature excellent speed at exceptionally low supply currents. Slew rate exceeds 7 V/s with supply current under 250 A per amplifier. these
The OP282 dual and quad operational amplifiers feature excellent speed at exceptionally low supply currents. The features of OP282 are: (1)High Slew Rate: 9 V/ms; (2)Wide Bandwidth: 4 MHz; (3)Low Supply Current: 250 mA/Amplifier; (4)Low Offset Voltage: 3 mV; (5)Low Bias Current: 100 pA; (6)Fast Settling Time; (7)Common-Mode Range Includes V+; (8)Unity Gain Stable.
The following is about the absolute maximum ratings of OP282: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±18 V; (3)Differential Input Voltage: 36 V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range P, S Packages: 65°C to +150°C; (6)Operating Temperature Range: 55°C to +125°C; (7)Junction Temperature Range P, S Packages: 65°C to +125°C; (8)Lead Temperature Range (Soldering, 60 sec): +300°C.
The electrical characteristics of the OP282 are: (1)Offset Voltage: 0.2 mV typ and 3 mV max; (2)Input Bias Current: 3pA typ and 100pA max at VCM = 0 V or 500 pA at VCM = 0 V; (3)Input Offset Current: 1pA typ and 50pA max at VCM = 0 V or 250pA at VCM = 0 V; (4)Input Voltage Range: 11V to +15 V; (5)Common-Mode Rejection: 70dB min and 90dB typ at 11 V VCM +15 V, 40 TA +85°C; (6)Large Signal Voltage Gain: 20 V/mV at RL = 10 k and 15V/mV at RL = 10 k, 40 TA +85°C; (7)Offset Voltage Drift: 10 V/°C; (8)Bias Current Drift: 8 pA/°C.
