OP262

Features: Wide Bandwidth: 15 MHzLow Offset Voltage: 325 V maxLow Noise: 9.5 nV/÷Hz @ 1 kHzSingle-Supply Operation: +2.7 V to +12 VRail-to-Rail Output SwingLow TCVOS: 1 V/ typHigh Slew Rate: 13 V/sNo Phase InversionUnity Gain StableApplicationPortable InstrumentationSampling ADC AmplifierWireless L...

product image

OP262 Picture
See larger image
SeekIC No. : 004437916 Detail

OP262: Features: Wide Bandwidth: 15 MHzLow Offset Voltage: 325 V maxLow Noise: 9.5 nV/÷Hz @ 1 kHzSingle-Supply Operation: +2.7 V to +12 VRail-to-Rail Output SwingLow TCVOS: 1 V/ typHigh Slew Rate: 13 V/sNo...

OP262 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
OP262
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Wide Bandwidth: 15 MHz
Low Offset Voltage: 325 V max
Low Noise: 9.5 nV/÷Hz @ 1 kHz
Single-Supply Operation: +2.7 V to +12 V
Rail-to-Rail Output Swing
Low TCVOS: 1 V/ typ
High Slew Rate: 13 V/s
No Phase Inversion
Unity Gain Stable




Application

Portable Instrumentation
Sampling ADC Amplifier
Wireless LANs
Direct Access Arrangement
Office Automation




Pinout

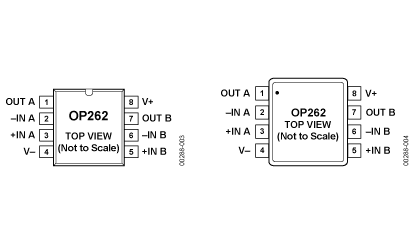

Connection Diagram



OP262 Diagram




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±6 V
Input Voltage1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±6 V
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . ±0.6 V
Internal Power Dissipation
SOIC (S) . . . . . . . . . . . . . . . . . . Observe Derating Curves
TSSOP (RU) . . . . . . . . . . . . . . . . Observe Derating Curves
Output Short-Circuit Duration . . Observe Derating Curves
Storage Temperature Range . . . . . . . . .65C to +150
Operating Temperature Range . . . . . . . 40C to +125
Junction Temperature Range . . . . . . . . 65C to +150
Lead Temperature Range (Soldering, 10 sec) . . . . +300

-3dB Bandwidth 15MHz
Slew Rate 13V/s
Vos 25V
Ib 260nA
Input Noise (nV/rtHz) 9.5nV/rtHz
Vcc-Vee Supply (V) 2.7 to 12
Iq per Amplifier 775A
# OpAmps per Pkg 2
Operating Temp Range -40 to +125
Packages SOIC,SOP





Description

The OP162 (single), OP262 (dual), OP462 (quad) rail-to-rail 15 MHz amplifiers feature the extra speed new designs require, with the benefits of precision and low power operation. With their incredibly low offset voltage of 45 mV (typ) and low noise, they are perfectly suited for precision filter applications and instrumentation. The low supply current of 500 mA (typ) is critical for portable or densely packed designs. In addition, the rail-to-rail output swing provides reat-er dynamic range and control than standard video amplifiers provide.

These products OP162 (single), OP262 (dual), OP462 (quad) operate from single supplies as low as +2.7 V to dual supplies of ±6 V. The fast settling times and wide output swings recommend them for buffers to sampling A/D converters.The output drive of 30 mA (sink and source) is needed for many audio and display applications; more output current can be supplied for limited durations.

The OP162 family is specified over the extended industrial temperature range (40C to +125C). The single OP162
and dual OP262 are available in 8-lead SOIC and TSSOP packages. The quad OP462 is available in 14-lead narrow-body SOIC and TSSOP packages.
