Features: Single-Supply Operation
Wide Bandwidth: 4 MHz
Low Offset Voltage: 65 V
Unity-Gain Stable
High Slew Rate: 4.0 V/s
Low Noise: 3.9 nV/HzApplicationBattery Powered Instrumentation
Power Supply Control and Protection
Telecom
DAC Output Amplifier

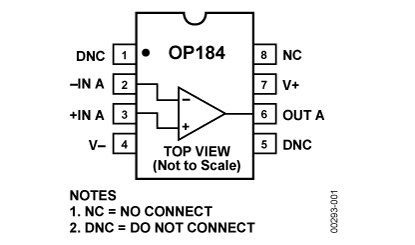

ADC Input BufferPinout
Specifications
| -3dB Bandwidth |
4.25MHz |
| Slew Rate |
4V/s |
| Vos |
175V |
| Ib |
80nA |
| Input Noise (nV/rtHz) |
3.9nV/rtHz |
| Vcc-Vee Supply (V) |
3 to 36 |
| Iq per Amplifier |
2mA |
| # OpAmps per Pkg |
1 |
| Operating Temp Range |
-40 to +125 |
| Packages |
SOIC |
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±18 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±18 V
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . . . ±0.6 V
Output Short-Circuit Duration to GND3 . . . . . . . .. Indefinite
Storage Temperature Range
P, S Packages . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
OP184/OP284/OP484E, F . . . . . . . . . . .. .40°C to +125°C
Junction Temperature Range
P, S Packages . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering 60 sec) . . . . . . +300°CDescriptionThe OP184/OP284/OP484 are single, dual and quad singlesupply,4 MHz bandwidth amplifiers featuring rail-to-rail in-puts and outputs. They are guaranteed to operate from +3 to +36 (or ±1.5 to ±18) volts and will function with a sin-gle supply as lowas +1.5 volts.
These amplifiers are superb for single supply applications requiring both ac and precision dc performance. The combi-nation of bandwidth, low noise and precision makes the OP184/OP284/ OP484 useful in a wide variety of pplications, including filters and instrumentation.
OP184 Other applications for these amplifiers include portable telecom equipment, power supply control and protection, and as amplifiers or buffers for transducers with wide output ranges. Sensors requiring a rail-to-rail input amplifier include Hall effect, piezo electric, and resistive transducers.
The ability to swing rail-to-rail at both the input and output enables designers to build multistage filters in single-sup-ply systems and to maintain high signal-to-noise ratios.
The OP184/OP284/OP484 are specified over the HOT extended industrial (40°C to +125°C) temperature range. The single and dual are available in 8-pin plastic DIP plus SO surface mount packages. The quad OP484 is available in 14-pin plastic DIPs and 14-lead narrow-body SO packages.
OP184 Data Sheet
