OP162

Features:

Wide Bandwidth: 15 MHz
Low Offset Voltage: 325 V max
Low Noise: 9.5 nV/÷Hz @ 1 kHz
Single-Supply Operation: +2.7 V to +12 V
Rail-to-Rail Output Swing
Low TCVOS: 1 V/ typ
High Slew Rate: 13 V/s
No Phase Inversion
Unity Gain Stable




Application

Portable Instrumentation
Sampling ADC Amplifier
Wireless LANs
Direct Access Arrangement
Office Automation

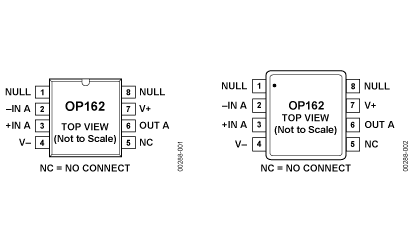

Pinout








Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±6 V
Input Voltage1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±6 V
Differential Input Voltage² . . . . . . . . . . . . . . . . . . . ±0.6 V
Internal Power Dissipation
SOIC (S) . . . . . . . . . . . . . . . . . . Observe Derating Curves
TSSOP (RU) . . . . . . . . . . . . . . . . Observe Derating Curves
Output Short-Circuit Duration . . Observe Derating Curves
Storage Temperature Range . . . . . . . . .65C to +150
Operating Temperature Range . . . . . . . 40C to +125
Junction Temperature Range . . . . . . . . 65C to +150
Lead Temperature Range (Soldering, 10 sec) . . . . +300






Description

The OP162 (single), OP262 (dual), OP462 (quad) rail-to-rail 15 MHz amplifiers feature the extra speed new designs require, with the benefits of precision and low power operation. With their incredibly low offset voltage of 45 mV (typ) and low noise, they are perfectly suited for precision filter applications and instrumentation. The low supply current of 500 mA (typ) is critical for portable or densely packed designs. In addition, the rail-to-rail output swing provides reat-er dynamic range and control than standard video amplifiers provide.

These products OP162 operate from single supplies as low as +2.7 V to dual supplies of ±6 V. The fast settling times and wide output swings recommend them for buffers to sampling A/D converters.The output drive of 30 mA (sink and source) is needed for many audio and display applications; more output current can be supplied for limited durations.

The OP162 family is specified over the extended industrial temperature range (40C to +125C). The single OP162
and dual OP262 are available in 8-lead SOIC and TSSOP packages. The quad OP462 is available in 14-lead narrow-body SOIC and TSSOP packages.
