Features:

Very High Slow Rate........................................................1000v/s Typ
-3dB Bandwidth(Av=+1)......................................................90MHZ Typ
Bandwidth Independent of Gain
Unity-Gain Stable
Low Supply Current................................................4.5mA per amp Typ
Available In Dle Form


Pinout

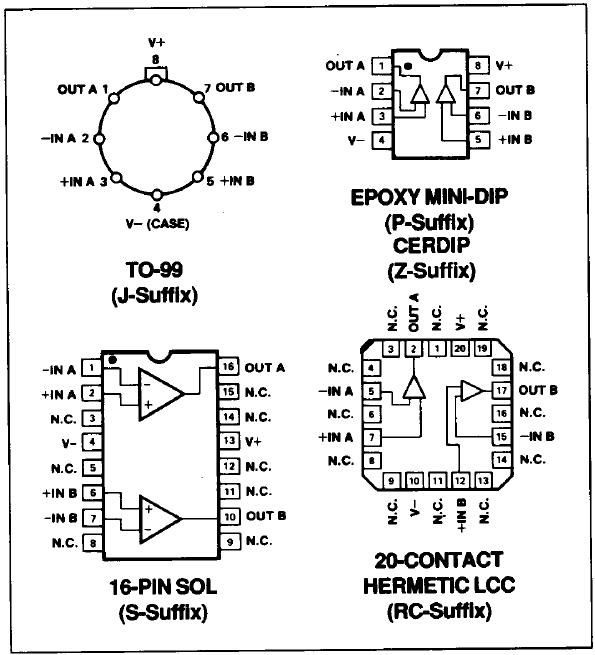

Connection Diagram


Specifications

Supply Voltage......................................................................................±18v
Input Voltage.........................................................................Supply Voltage
Differential Input Voltage........................................................................±1v
Inverting Input Current..............................................................±20mA Peak
Output Short-circuit Duration...............................................................10 Sec
Operate Temperature Range
OP-260A, (J,RC,Z)..................................................................-55 to +125
OP-260E/F(J,Z)........................................................................-40 to +85
OP-260G(P,S)..........................................................................-40 to +85
Storage Temperature Range.................................................-65 to +175
Junction Temperature Range(J,RC)........................................-65 to +175
Junction Temperature Range(P,S)..........................................-65 to +150
Lead Temperature(slodering,10 Sec)..................................................+300


Description

The dual OP-260 represents a new concept in monolithic operational amplifiers. Built on PMI's high-speed bipolar process, the OP-260 employs current feedback to provide consisterntly wideband operation regardless of gain. The OP-260's -3dB bandwidth of 90MHz at Av=+1 combines with a slew rate of 1000V/s for extremely high-speed operation. For its high-speed bandwidth, the OP-260 requires only 4.5mA of supply current per amplifier, a considerable power savings over other high-speed operational amplifier.

The OP-260 is easy to design with, since most of the circuit assumptions for voltage feedback amplifiers can also be used for current feedback amplifiers.The two independent amplifiers of the OP-260 allow two channel amplification with matched AC performance. It is also ideal for high-speed instrumentation amplifiers. Other applications for the OP-260 include ultrasound and sonar systems, video amplifiers and high-speed data acquisition systems.
