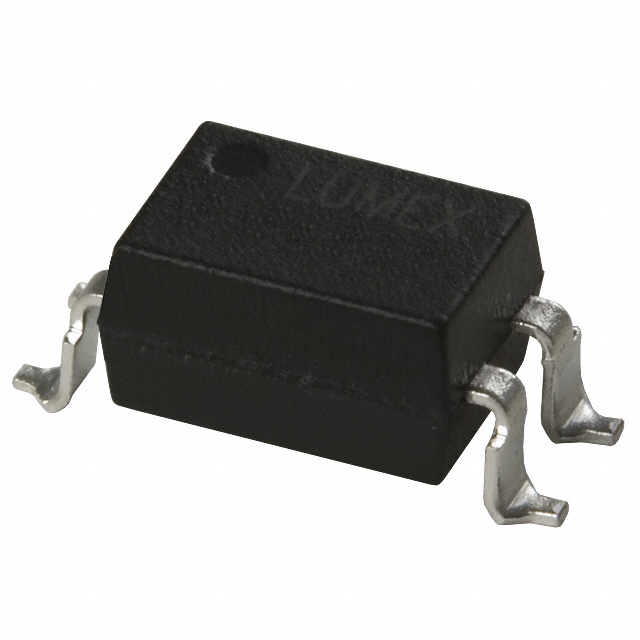

OCP-PCT124/A-TR: OPTOCOUPLER 1-CH AC-IN SMD

OCP-PCT124/A-TR Data Sheet

Get Latest Price

Part Number:: OCP-PCT124/A-TR
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

OCP-PCP116 evaluate
US $.39 - .39 / Piece

OPTOCOUPLER DIGITAL OUTPUT 6-DIP
OCP-PCP116-TR evaluate
US $.36 - .36 / Piece

Logic Output Optocouplers Digital DC Open SMD-6 5000Vrms
OCP-PCT114/C evaluate
US $.07 - .07 / Piece

Transistor Output Optocouplers Photocoupler 1.2Vf 200mW, 200-400 CTR

Product Details

Quick Details

Series:	-	Manufacturer:	Lumex Opto/Components Inc
Number of Channels:	1	Standard Supported :	IEEE 802.3
Input Type:	AC, DC	Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	60% @ 1mA	Current Transfer Ratio (Max):	600% @ 1mA
Voltage - Output:	60V	Current - Output / Channel:	50mA
Current - DC Forward (If):	±50mA	Vce Saturation (Max):	300mV
Output Type:	Transistor	Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing

Description

Series: -
Number of Channels: 1
Voltage - Isolation: 5000Vrms
Current - Output / Channel: 50mA
Output Type: Transistor
Mounting Type: Surface Mount
Package / Case: 4-SMD, Gull Wing
Vce Saturation (Max): 300mV
Input Type: AC, DC
Current - DC Forward (If): ±50mA
Voltage - Output: 60V
Packaging: Cut Tape (CT)
Current Transfer Ratio (Min): 60% @ 1mA
Current Transfer Ratio (Max): 600% @ 1mA
Manufacturer: Lumex Opto/Components Inc

Parameters:

Technical/Catalog Information	OCP-PCT124/A-TR
Vendor	Lumex Opto/Components Inc
Category	Isolators
Isolation Voltage	5000Vrms
Input Type	AC, DC
Output Type	Transistor
Current - Output/Channel	50mA
Voltage - Output	60V
Vce Saturation (Max)	300mV
Current Transfer Ratio (Min)	60% @ 1mA
Mounting Type	Surface Mount
Package / Case	4-SMD
Packaging	Tape & Reel (TR)
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	OCP PCT124 A TR OCPPCT124ATR 67 1616 2 ND 6716162ND 67-1616-2
