OC100

PinoutSpecifications LED• Forward DC Current 100 mA• Surge Current 2.5 A• Reverse Voltage 5 V• Power Dissipation at 25°C 200 mW Photodiode• Reverse Voltage 10,000 V• Power Dissipation1W_______________________________________________• Storage Temperature ...

product image

OC100 Picture
SeekIC No. : 004437216 Detail

OC100: PinoutSpecifications LED• Forward DC Current 100 mA• Surge Current 2.5 A• Reverse Voltage 5 V• Power Dissipation at 25°C 200 mW Photodiode• Reverse Voltage 10,000 V&#...

floor Price/Ceiling Price

Part Number:
OC100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

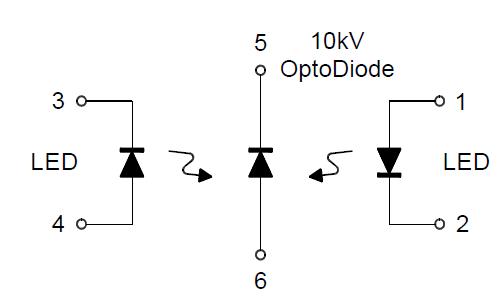

  Connection Diagram


Specifications

LED
• Forward DC Current                      100 mA
• Surge Current                                2.5 A
• Reverse Voltage                             5 V
• Power Dissipation at 25°C           200 mW

Photodiode
• Reverse Voltage                            10,000 V
• Power Dissipation                         1W
_______________________________________________
• Storage Temperature                    -40°C to +125°C
• Operating Temperature                -40°C to +100°C
• Isolation Test Voltage                  25 kV (Pins 1, 2, 3, & 4 tied to pins 5 & 6)
