OAA160

Solid State Relays DPST-NO/NO 8PIN DIP

product image

OAA160 Picture
SeekIC No. : 0091666 Detail

OAA160: Solid State Relays DPST-NO/NO 8PIN DIP

floor Price/Ceiling Price

Part Number:
OAA160
Mfg:
Clare
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount Mounting Style : SMD/SMT
Control Voltage Range : 1.2 V to 1.4 V Load Voltage Rating : 250 V
Load Current Rating : 50 mA Contact Form : 2 Form A (DPST)
Output Device : SSR Package / Case : SIP-8

Description

Product Type : PCB Mount
Mounting Style : SMD/SMT
Output Device : SSR
Load Voltage Rating : 250 V
Load Current Rating : 50 mA
Contact Form : 2 Form A (DPST)
Control Voltage Range : 1.2 V to 1.4 V
Package / Case : SIP-8


Features:

• Small 8 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750VRMS Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Surface Mount and Tape & Reel Versions Available





Application

• Telecommunications
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Hookswitch
• Dial Pulsing
• Ground Start
• Ringer Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls





Pinout

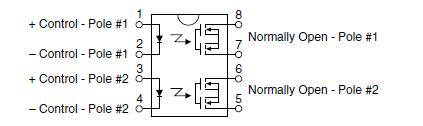

  Connection Diagram




Specifications

Parameter Min Typ Max Units
Input Power Dissipation - - 1501 mW
Input Control Current
Peak (10ms)
-
-
-
-
50
1
mA
A
Reverse Input Voltage - - 5 V
Total Power Dissipation - - 8002 mW
Isolation Voltage Input to Output 3750 - - VRMS
Operational Temperature -40 - +85 °C
Storage Temperature -40 - +125 °C
Soldering Temperature
DIP Package
Surface Mount Package
(10 Seconds Max.)
-
-
-
-
+260
+220
°C
°C
1 Derate Linearly 1.33 mw/°C
2 Derate Linearly 6.67 mw/°C





Description

OAA160 is a 250V, 50mA, 20 2-Form-A relay. This high performance product provides the fastest (0.125ms) switching available for two independent Form-A relays in a single package.




Parameters:

Technical/Catalog InformationOAA160
VendorClare
CategoryRelays
Mounting TypeThrough Hole
Termination StylePC Pin
Package / Case8-DIP
CircuitDPST (2 Form A)
Load Current50mA
Voltage - Input1.2VDC
Voltage - Load0 ~ 250V
Output TypeAC, DC
On-State Resistance100 Ohm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names OAA160
OAA160
