Product Details

Description



Features:

 OUTPUT POWER:
   Pf = 10 mW MIN
INTERNAL THERMOELECTRIC COOLER AND ISOLATOR
HERMETICALLY SEALED 14-PIN BUTTERFLY PACKAGE
POLARIZATION MAINTAIN FIBER PIGTAIL
AVAILABLE  FOR DWDM WAVELENGTHS BASED ON
    ITU-T RECOMMENDATIONS (100 GHz GRID) REFER TO
    THE ORDERING INFORMATION

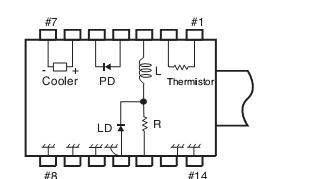

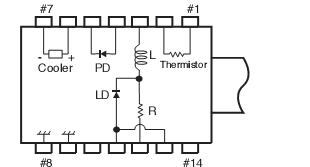

Pinout

Connection Diagram Connection Diagram


Specifications

SYMBOLS PARAMETERS UNITS RATINGS
IF Forward Current ofLD mA 300
VR Reverse Voltage of LD V 2.0
IF Forward Current of PD mA 10
VR Reverse Voltage of PD V 20
TC Operating Case Temperature °C -20 to +70
TSTG Storage Temperature °C -40 to +85
TSLD Lead Soldering
Temperature (10 s)		 °C 260




Description

NEC's NX8563 Series are a 1550 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode with Polarization Maintain Fiber (PMF). This device is de- signed as Continuous Wave (CW) light source and ideal for optical transmission systems in which external modulators are used.

The NX8563 is available for Dense Wavelenght Division Multi- plexing (DWDM) wave lengths based on ITU-T recommenda- tions, enabling a wide range of applications.
