NX26F011A

Features:

• Tailored for Portable and Mobile Media-Storage
Ideal for portable/mobile applications that transfer and store data, audio, or images
Removable Serial Flash Module package option
• NexFlash™ Non-volatile Memory Technology
Patented Single-Transistor EEPROM Cell
High-density, cost-effective, low-voltage/power
10K/100K endurance, ten years data retention
• Flash Memory for Battery-Operation
Single 5V or 3V supply for Read, Erase/Write
Icc 5 mA active with 1 A standby power
5 ms Erase/Write times for efficient battery use
• 1M-bits or 4M-bits of NexFlash Serial Memory
512 or 2,048 sectors of 264 bytes each
Simple commands: Reset, Read, Write, Ready/Busy
No pre-erase required, auto-erases before write
• Two-pin NXS Serial Interface
Saves Microcontroller-pins, simplifies PCB layout, low switching noise compared to parallel Flash
Supports clock operation as fast as 16 MHz
Multi-device cascading, up to 16 devices
• Development Tools and Accessories
SFK-NXS Serial Flash Development Kit

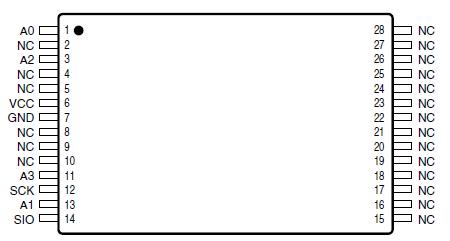

Pinout




Specifications

Symbol	Parameter	Conditions	Range	Unit
Vcc	Supply Voltage		0 to 7.0	V
VIN, VOUT	Voltage Applied to Any Pin	Relative to Ground	0.5 to Vcc + 0.6	V
TSTG	Storage Temperature		65 to +150	°C
TLEAD	Lead Temperature	Soldering, Ten Seconds	+300	°C

Description

The NexFlash™ NX26F011A and NX26F041A Serial Flash Memories are tailored for portable/mobile media-storage applications that transfer and store data, audio and images. Manufactured using NexFlash's patented single transistor EEPROM memory cell, the NX26F011A and NX26F041A provide a high-density, low-voltage, low-power, and cost effective solution for battery-operated nonvolatile data storage requirements. The NX26F011A and NX26F041A can operate with a single 5V or 3V supply for Read, Write, and Erase. Power consumption is very low due to A standby current and fast Erase/Write performance (as fast as 5 ms per sector) that minimizes power-on time, resulting in a highly efficient energy-per-transfer ratio. The NX26F011A
PRE-RELEASE MAY 1999 and NX26F011A offer 1M-bits and 4M-bits of Flash memory organized in sectors of 264 bytes each. Each sector is individually addressable through basic commands or
control functions such as Reset, Read, Erase/Write, and  Ready/Busy. The NXS (NexFlash Serial) 2-wire serial interface is ideal for use with microcontrollers since it only requires two pins. This leaves pins normally used for parallel Flash free for other uses. The NXS interface supports clock rates as fast as 16 MHz and allows for multi-device cascading of up to 16 devices. NX26F011A also simplifies PC-board layout and generates less transient noise than parallel devices. Development is supported with the NexFlash Serial Flash Development Kit.
