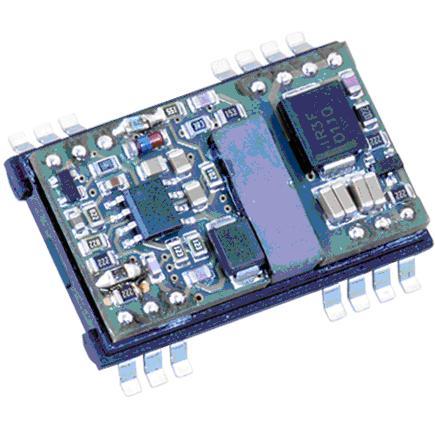

NVS0.7CG-M6

Input Voltage (nominal) :
Output Voltage (Channel 2) :
Output Current (Channel 2) :
Mounting Style :
Number of Outputs : 1
Product : Isolated
Output Voltage (Channel 1) : 5 V
Output Power : 6 W
Input Voltage Range : 9 V to 36 V
Output Current (Channel 1) : 0.7 A
Package / Case Size : SOIC-24


Features:

·  Single board design
·  8.5 mm height profile
·  Excellent co-planarity
·  Input/output isolation: 1500 Vdc
·  Low conducted and radiated EMI
·  Output overcurrent protection
·  Parallel and series connection providing flexible output voltages and power
·  Full rated output power at 71ºC with convection cooling
·  Operating temperature to 110ºC
·  UL, CSA and EN/IEC60950 (3^rd ed.) approved


Application

·  Distributed power architectures
·  Telecommunications equipment
·  LAN/WAN applications
·  Data processing


Specifications

Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely affect long term reliability and cause permanent damage to the converter.  pecifications apply over specified input voltage, output load and temperature range, unless otherwise noted.

Parameter	Conditions/Description	Min	Max	Units
Operating CaseTemp. (Tc)	At 100% load	-40	110	°C
Storage Temperature (Ts)		-55	120	°C

Description

The NVS0.7CG-M6 converters are low profile, single and dual outputs, DC/DC converters intended for SMT placement and reflow soldering. The product provides on-board conversion of a  ide range of standard telecom and datacom input voltages to isolated low output voltages. Proprietary patented manufacturing process of NVS0.7CG-M6 with full process automation ensures optimal product quality in an extremely small footprint.
