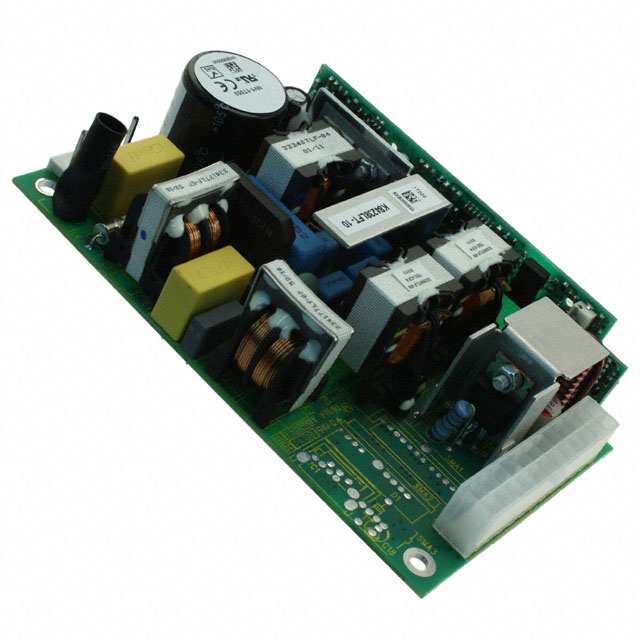

NV14G5TT: PWR SUP +24V +5V +12V -12V

NV14G5TT Data Sheet

US $ 118.32~118.32 / Piece | Get Latest Price

Part Number:: NV14G5TT
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1

Unit Price
$118.32

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

NV1452FFNC evaluate
US $151.8 - 162.6 / Piece

Linear and Switching Power Supplies 175W 5V 2.7V 25A
NV1452TT evaluate
US $131.78 - 131.78 / Piece

Linear and Switching Power Supplies 175W 5V 2.7V 25A
NV1452TTC evaluate
US $138 - 143.4 / Piece

Linear and Switching Power Supplies 175W 5V 2.7V 25A

Product Details

Quick Details

Series:	NV175	Manufacturer:	TDK-Lambda Americas Inc
Type:	Standard Product	Number of Outputs:	4
Voltage - Output:	24V	Interface Type :	Parallel
Voltage - Input:	90 ~ 264VAC	Output - 1 @ Current (Max):	24 VDC @ 7.5A
Output - 2 @ Current (Max):	5 VDC @ 8A	Output - 3 @ Current (Max):	12 VDC @ 5A
Output - 4 @ Current (Max):	-12 VDC @ 1A	Power (Watts):	180W
Power Supply Type:	Switching (Open Frame)	Applications:	Commercial
Mounting Type:	Chassis Mount	Size / Dimension:	5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm)
Operating Temperature:	0°C ~ 70°C

Description

Type: Standard Product
Power Supply Type: Switching (Open Frame)
Applications: Commercial
Mounting Type: Chassis Mount
Voltage - Output: 24V
Efficiency: 90%
Voltage - Input: 90 ~ 264VAC
Operating Temperature: 0°C ~ 70°C
Manufacturer: TDK-Lambda Americas Inc
Number of Outputs: 4
Output - 1 @ Current (Max): 24 VDC @ 7.5A
Power (Watts): 180W
Series: NV175
Size / Dimension: 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm)
Output - 3 @ Current (Max): 12 VDC @ 5A
Output - 4 @ Current (Max): -12 VDC @ 1A
Output - 2 @ Current (Max): 5 VDC @ 8A

Parameters:

Technical/Catalog Information	NV14G5TT
Vendor	TDK-LAMBDA AMERICAS INC
Category	Power Supplies
Number of Outputs	4
Power (Watts)	180W
Voltage - Output	24V
Voltage - Input	90 ~ 264VAC
Power Supply Type	Switching (Open Frame)
1st Output	24 VDC @ 7.5A
2nd Output	5 VDC @ 8A
3rd Output	12 VDC @ 5A
4th Output	-12 VDC @ 1A
Mounting Type	Chassis Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NV14G5TT NV14G5TT
