NUP4302MR6

Features: • Very Low Forward Voltage Drop• Fast Switching• PN Junction Guard Ring for Transient and ESD Protection• ESD Rating of Class 3B (Exceeding 16 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model• IEC 61000−4−2 Level 4 ESD Pro...

product image

NUP4302MR6 Picture
See larger image
SeekIC No. : 004436744 Detail

NUP4302MR6: Features: • Very Low Forward Voltage Drop• Fast Switching• PN Junction Guard Ring for Transient and ESD Protection• ESD Rating of Class 3B (Exceeding 16 kV) per Human Body Mo...

NUP4302MR6 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NUP4302MR6
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Very Low Forward Voltage Drop
• Fast Switching
• PN Junction Guard Ring for Transient and ESD Protection
• ESD Rating of Class 3B (Exceeding 16 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model
• IEC 61000−4−2 Level 4 ESD Protection
• Flammability Rating: UL 94 V−0


Application

• Ultra High−Speed Switching
• USB 1.1 and 2.0 Power and Data Line Protection
• Digital Video Interface (DVI)
• Monitors and Flat Panel Displays


Pinout

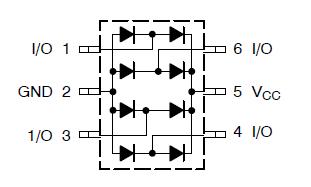

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Peak Reverse Breakdown Voltage
VBR
30
V
Forward Power Dissipation (TA = 25°C)
PF
225
mW
Forward Continuous Current
IF
200
mA
Junction Operating Temperature
TJ
−55 to +125
°C
Storage Temperature Range
Tstg
−55 to +150
°C

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and re not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
