NUP4201MR6

Features: • Low Capacitance (3 pF Maximum Between I/O Lines)• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body model and Class C (Exceeding 400 V) per Machine Model• Protection for the Following IEC Standards: IEC 61000−4−2 (ESD) 15 kV (air) 8 kV (contact) IEC 6...

product image

NUP4201MR6 Picture
See larger image
SeekIC No. : 004436743 Detail

NUP4201MR6: Features: • Low Capacitance (3 pF Maximum Between I/O Lines)• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body model and Class C (Exceeding 400 V) per Machine Model• Protecti...

NUP4201MR6 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NUP4201MR6
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Capacitance (3 pF Maximum Between I/O Lines)
• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body model and Class C (Exceeding 400 V) per Machine Model
• Protection for the Following IEC Standards:
   IEC 61000−4−2 (ESD) 15 kV (air) 8 kV (contact)
   IEC 61000−4−4 (EFT) 40 A (5/50 ns)
   IEC 61000−4−5 (lighting) 23 A (8/20 s)
• UL Flammability Rating of 94 V−0
• Pb−Free Package is Available


Application

• High Speed Communication Line Protection
• USB 1.1 and 2.0 Power and Data Line Protection
• Digital Video Interface (DVI)
• Monitors and Flat Panel Displays


Pinout

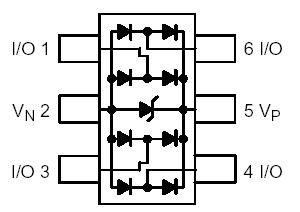

Connection Diagram


Specifications

Rating Symbol Value Unit
Peak Power Dissipation
8 x 20 S @ TA = 25°C (Note 1)		 Ppk 500 W
Operating Junction Temperature Range TJ −40 to +125 °C
Storage Temperature Range Tstg −55 to +150 °C
Lead Solder Temperature −
Maximum (10 Seconds)		 TL 235 °C
Human Body Model (HBM)
Machine Model (MM)
IEC 61000−4−2 Air (ESD)
IEC 61000−4−2 Contact (ESD)		 ESD 16000
400
20000
20000		 V

Maximum ratings are those values beyond which device damage can occur.
Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. Non−repetitive current pulse per Figure 1 (Pin 5 to Pin 2)




Description

The NUP4201MR6 transient voltage suppressor is designed to protect high speed data lines from ESD, EFT, and lighting.
