NUF8402MN

Features: • EMI Filtering and ESD Protection• Integration of 24 Discrete Components• Compliance with IEC61000−4−2 (Level 4) > 18 kV (Contact)• DFN Package, 1.6 x 4.0 mm• Moisture Sensitivity Level 1• ESD Ratings: Human Body Model = 3B Mach...

product image

NUF8402MN Picture
See larger image
SeekIC No. : 004436735 Detail

NUF8402MN: Features: • EMI Filtering and ESD Protection• Integration of 24 Discrete Components• Compliance with IEC61000−4−2 (Level 4) > 18 kV (Contact)• DFN Package, 1....

NUF8402MN Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NUF8402MN
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• EMI Filtering and ESD Protection
• Integration of 24 Discrete Components
• Compliance with IEC61000−4−2 (Level 4)
> 18 kV (Contact)
• DFN Package, 1.6 x 4.0 mm
• Moisture Sensitivity Level 1
• ESD Ratings: Human Body Model = 3B
Machine Model = C
• This is a Pb−Free Device*


Application

• EMI Filtering and ESD Protection for Data Lines
• Wireless Phones
• Handheld Products
• Notebook Computers
• LCD Displays


Pinout

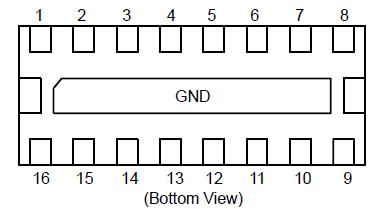

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
ESD Discharge IEC61000−4−2 Contact Discharge
VPP
18
kV
Operating Temperature Range
Top
−40 to +85
°C
Storage Temperature Range
Tstg
−55 to +150
°C
Maximum Lead Temperature for Soldering Purposes (1.8 in from case for 10 seconds)
TL
260
°C

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
