NTMD2C02R2

Mounting Style : SMD/SMT
Packaging : Reel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 20 V
Transistor Polarity : N and P-Channel
Configuration : Dual Dual Drain
Package / Case : SOIC-8 Narrow
Gate-Source Breakdown Voltage : +/- 12 V
Continuous Drain Current : 5.2 A at N Channel, 3.4 A at P Channel
Resistance Drain-Source RDS (on) : 43 mOhms at 4.5 V at N Channel, 100 mOhms at 4.5 V at P Channel


Features:

• Ultra Low RDS(on) Provides Higher Efficiency and Extends Battery Life
• Logic Level Gate Drive Can Be Driven by Logic ICs
• Miniature SO8 Surface Mount Package Saves Board Space
• Diode Is Characterized for Use In Bridge Circuits
• Diode Exhibits High Speed, With Soft Recovery
• IDSS Specified at Elevated Temperature
• Mounting Information for SO8 Package Provided

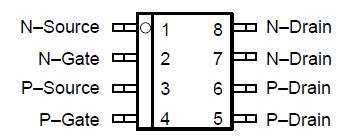

Pinout




Specifications

Rating	Symbol	Value	Unit
DraintoSource Voltage NChannel PChannel	VDSS	20 20	Vdc
GatetoSource Voltage	VGS	±12	Vdc
Drain Current Continuous NChannel PChannel Pulsed NChannel PChannel	ID IDM	5.2 3.4 48 17	A
Operating and Storage Temperature Range	TJ, Tstg	55 to 150	°C
Total Power Dissipation @ TA= 25°C (Note 2)	Pd	2.0	Watts
Thermal Resistance Junction to Ambient (Note 2)	RJA	62.5	°C/W
Maximum Lead Temperature for Soldering Purposes, 1/8, from case for 10 seconds.	TL	260	°C

1. Negative signs for PChannel device omitted for clarity.
2. Mounted on 2, square FR4 board (1, sq. 2 oz. Cu 0.06, thick single sided) with
one die operating, 10 sec. max.


Description

These miniature surface mount MOSFETs NTMD2C02R2 feature ultra low RDS(on) and true logic level performance. They are capable of withstanding high energy in the avalanche and commutation modes and the draintosource diode has a very low reverse recovery time. MiniMOS NTMD2C02R2 are designed for use in low voltage, high speed switching applications where power efficiency is important. Typical applications of NTMD2C02R2 are dcdc converters, and power management in portable and battery powered products such as computers, printers, cellular and cordless phones. NTMD2C02R2 can also be used for low voltage motor controls in mass storage products such as disk drives and tape drives.
