NTE996

Features:

 Slew Rate (Unity Gain Compensated):  50V/µs
Fully Adjustable Gain:  0 to gm • RL Limit
Extended gm Linearity:  3 Decades
Flexible Supply Voltage Range:  ±2V to ±18V
Adjustable Power Consumption

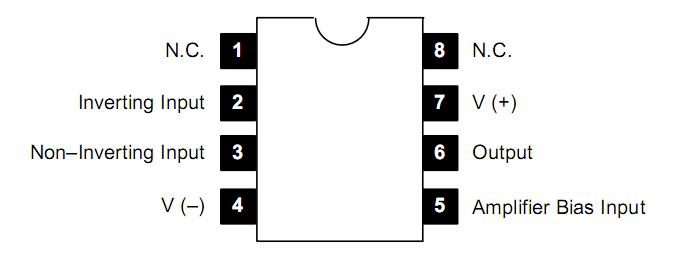

Pinout




Specifications

DC Supply Voltage, V_S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . ±18V
Power Dissipation, P_D  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250mW
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . ±5V
Amplifier Bias Current, I_ABC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 2mA
DC Input Voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +VS to VS
Output Short Circuit Duration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .. . . . . . .  . . . . . . Indefinite
Operating Temperature Range, T_opr  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70°C
Storage Temperature Range, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . 65° to +150°C
Lead Temperature (During Soldering, 10sec), T_L . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . +260°C


Description

The NTE996 is a programmable transconductance block intended to fulfill a wide variety of variable gain applications.  This device has differential inputs and high impedance pushpull outputs.  The NTE996 has high input impedance and its transconductance (g_m) is directly proportional to the ampli-fier bias current (I_ABC).
High slew rate together with programmable gain make the NTE996 an ideal choice for variable gain applications such as sample and hold, multiplexing, filtering, and multiplying
