NTE984

Features: · Improved AGC, Fast Response, Sample and Hold Keyed· High Gain Wideband IF Amplifiers· Delayed AGC Output for Tuner· Gain Reduction with Excellent Stability· Linear Video Detector· Video Amplifier· Low Noise· Internal Shunt Regulator· For Color of MonochromePinoutSpecificationsDC Supply...

product image

NTE984 Picture
See larger image
SeekIC No. : 004436642 Detail

NTE984: Features: · Improved AGC, Fast Response, Sample and Hold Keyed· High Gain Wideband IF Amplifiers· Delayed AGC Output for Tuner· Gain Reduction with Excellent Stability· Linear Video Detector· Video ...

NTE984 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE984
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Improved AGC, Fast Response, Sample and Hold Keyed
· High Gain Wideband IF Amplifiers
· Delayed AGC Output for Tuner
· Gain Reduction with Excellent Stability
· Linear Video Detector
· Video Amplifier
· Low Noise
· Internal Shunt Regulator
· For Color of Monochrome


Pinout

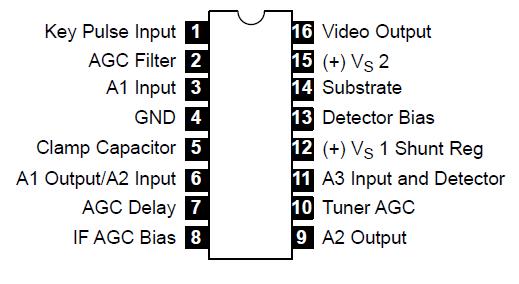

Connection Diagram


Specifications

DC Supply Voltage:
Between Pin15 and Pin4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16V
Between 470 Connected to Pin12 and Pin14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35V
DC Supply Current:
At Pin15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20mA
At Pin12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30mA
Device Dissipation (TA +55), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .750mW
Derate Linearly Above +55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.9mW/
Operating Ambient Temperature Range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to +85
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65° to +150
Lead Temperature (During Soldering, 1/16" ±1/32" from case, 10sec max), TL . . . . . . . . . . . +265


Description

The NTE984 is a monolithic integrated circuit in a 16Lead DIP type package designed to perform IF amplification, video detection, and videoamplifier functions in color and monochrome TV receivers.
