Product Details

Description



Features:

` Single Power Supply Operation
` Wide Supply Voltage Range
` Matched Open Loop Voltage Gain
` TurnOn Delay


Pinout

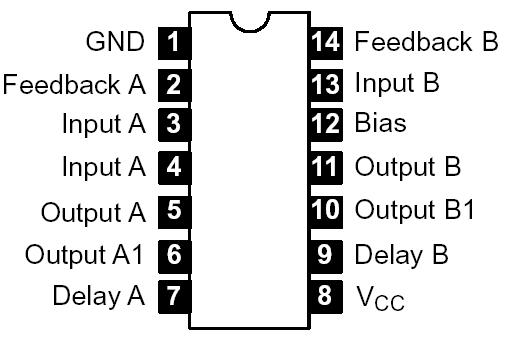

Connection Diagram


Specifications

Power Supply, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . +16V
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . .670mW
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . .8.3mW/°C
Operating Temperature Range, Topr . . . .20° to +85°C
Storage Temperature Range, Tstg . . . . 65° to +150°C


Description

The NTE983 is a linear monolithic integrated circuit in a 14Lead DIP type package designed for use with lowlevel signals in lownoise applications. This NTE983 offers outstanding value, performance, and reliability in both consumer and industrial products such as stereo tape players, microphone amplifiers, phonograph preamplifiers, and FM stereo receivers.

An integral voltage regulator NTE983 eliminates the need for audio or RF decoupling. Internal feedback resistors are provided for NAB equalization.
