NTE976

Features:

 Offset Voltage over Temperature:  3mV Max
  Input Current over Temperature:  100nA Max
  Offset Current over Temperature:  20nA Max
  Guaranteed Drift Characteristics

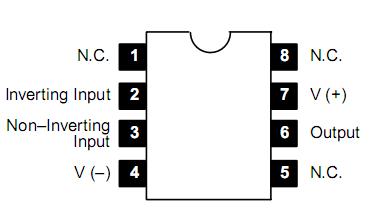

Pinout




Specifications

Supply Voltage,
         V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . +18V
         V_EE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 18V
Power Dissipation (Note 1), P_D  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Differential Input Voltage, V_ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . ±30V
Input Voltage (Note 2), VIN   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .  15_V
Output ShortCircuit Duration, t_s . . . . . . . . . . . . . . . . . . . . . . . . .. . .  . .. . . .  . . . . . . . . . . . . . . Indefinite
Operating Temperature Range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70°C
Storage Temperature Range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .  65° to +150°C
Lead Temperature (During Soldering, 10sec), T_L  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300°C


Description

The NTE976 is a general purpose operational amplifier with the necessary frequency compensation built into a single 8Lead DIP type package.  Advanced processing techniques of NTE976 make the input cur- rents a factor of ten lower than industry standards like the NTE909.  Yet, it is a direct plugin replace- ment for the NTE909 and the NTE941M.
This NTE976 provides better accuracy and lower noise in high impedance circuitry.  The low input cur-rents also make it particularly well suited for long interval integrators or timers, sample and hold cir-cuits, and low frequency waveform generators.  Further, replacing circuits where matched transistor pairs buffer the inputs of conventional IC op amps, the NTE976 can give lower offset voltage and drift at a lower cost.
