Product Details

Description



Features:

The NTE974 consists of two digital phase detectors, a charge pump, and an amplifier.  In combination with a voltage controlled multivibrator, it is useful in a broad range of phaselocked loop applications. The circuit accepts MTTL waveforms at the R and V inputs and generates an error voltage that is pro-portional to the frequency and/or phase difference of the input signals.  Phase detector #1 is intended for use in systems requiring zero frequency and phase difference at lock.  Phase detector #2 is used if quadrature lock is desired.  Phase detector #2 can also be used to indicate that the main loop, utiliz-ing phase detector #1, is out of lock.

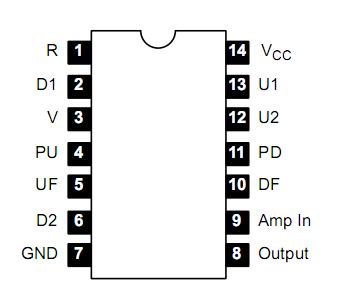

Pinout

Connection Diagram


Specifications

Supply Operating Voltage Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.75 to 5.25V
Supply Voltage, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+7.0V
Input Voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .  +5.5V
Output Voltage, VO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +5.5V
Operating Temperature Range, Topr 0° to  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . +75°C
Storage Temperature Range, Tstg 55° to . . . . . . . . . . . . . . . . . . . . . . . . .  .  . . . . . . . . . +125°C
Maximum Junction Temperature, TJ  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .. . . . . . . . +150°C
Thermal Resistance, JunctiontoCase, RthJC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.07°C/mW
Thermal Resistance, JunctiontoAmbient, RthJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.15°C/mW
